SL 11 097 17 Z

Headers, Male Pins Overview

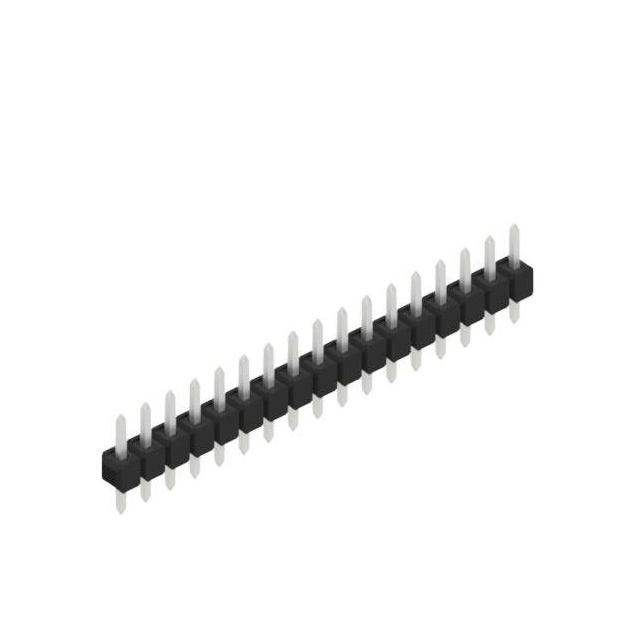

The SL 11 097 17 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 17 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes tin-plated CuSn-alloy contacts and a PA 4.6 insulating body rated UL 94 V-0. Designed for through-hole mounting, it supports 250 V AC voltage and withstands 2000 V dielectric strength.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard PCB interconnection
• Tin-plated copper alloy contacts ensuring reliable conductivity
• PA 4.6 insulating material providing UL 94 V-0 flame resistance

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Signal routing in consumer electronics assemblies
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's official documentation to confirm plating specifications and availability status. Ensure the selected part matches the required 17-position count and 2.54 mm pitch for your design. Cross-reference the RoHS compliance data provided in the latest datasheet before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, through-hole male header is required for 2.54 mm spacing applications. The tin-plated contacts are suitable for general-purpose signaling where gold plating is not strictly necessary. Confirm that the PA 4.6 insulation rating meets the thermal and flammability requirements of the target environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series offers various contact counts and row configurations. The SL 11 097 variant specifically denotes the 17-position configuration within this standardized line of male headers designed for robust through-hole assembly on printed circuit boards.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users must verify compatibility with existing mating connectors and PCB footprint dimensions if considering alternative suppliers or generic equivalents.
