SL 11 097 18 G

Headers, Male Pins Overview

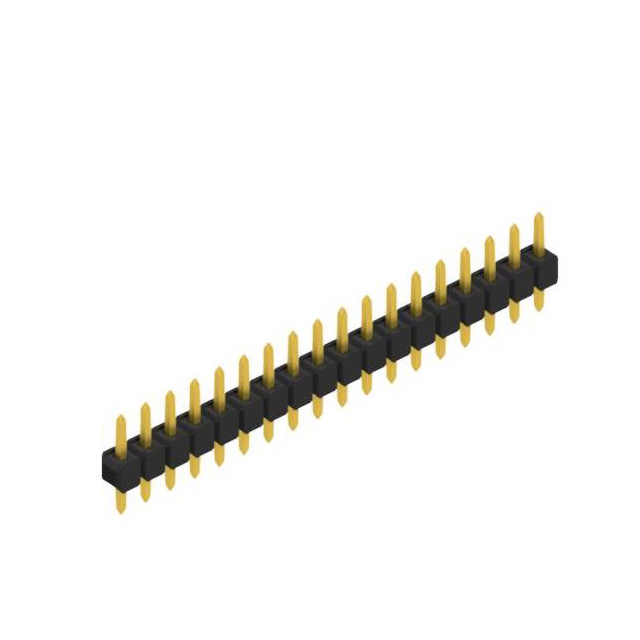

The SL 11 097 18 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row of 18 contacts with a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, this straight header facilitates board-to-board or wire-to-board connections. The component utilizes tin-plated copper alloy contacts and a polyamide insulator, ensuring reliable electrical performance in standard electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standardized interconnects
• Through-hole mounting style for secure PCB attachment
• Tin-plated contact surfaces for corrosion resistance

Headers, Male Pins Applications

• General-purpose electronic circuit boards
• Industrial control system interfaces
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm plating type and contact count. Ensure the selected variant matches the required current rating and voltage specifications for the target application. Cross-reference the manufacturer datasheet to confirm mechanical dimensions and thermal stability limits before integration into the design.

Headers, Male Pins Selection Notes

Select this component when a single-row, 18-position male header is required. Confirm that the 2.54 mm pitch aligns with the mating connector footprint. Evaluate the through-hole mounting requirement against available board space and ensure the polyamide insulation meets the environmental temperature constraints of the operating environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik headers. The series offers various contact counts and plating options. The SL 11 097 18 G specifically provides a mid-range contact count suitable for dense but manageable connection requirements in compact electronic modules.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 18-position count, 2.54 mm pitch, and through-hole straight form factor. Verify compatibility with existing mating connectors. Consider alternative manufacturers only if they provide identical mechanical and electrical specifications.
