SL 11 097 18 S

Headers, Male Pins Overview

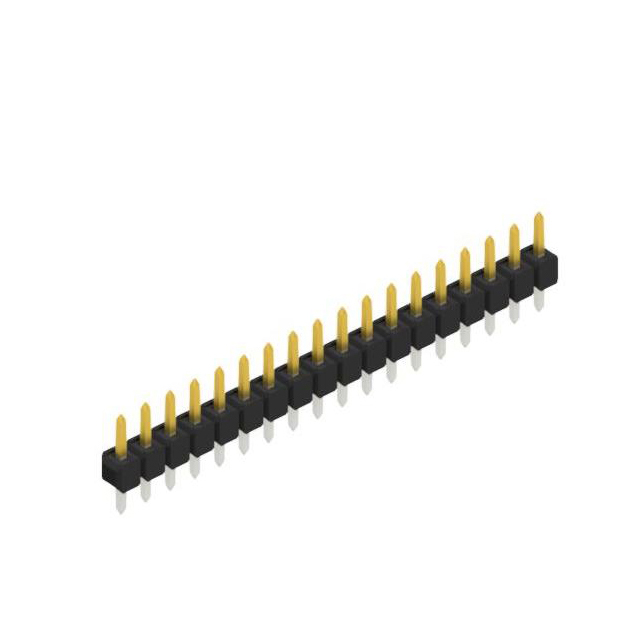

The SL 11 097 18 S is a male pin header connector manufactured by Fischer Elektronik. It features a single row of 18 contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole mounting for secure PCB attachment. Contact materials consist of copper alloy with tin plating, providing reliable electrical conductivity and corrosion resistance. The housing is constructed from polyamide (PA46), offering mechanical stability and thermal resilience. This component is designed for board-to-board or wire-to-board interconnections in electronic assemblies requiring robust signal transmission.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for straightforward assembly
• Through-hole termination method ensures mechanical durability
• Tin-plated copper alloy contacts for consistent conductivity
• Polyamide insulation material provides structural integrity

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board connection modules
• General-purpose electronic circuit assemblies
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates tin plating rather than gold when sourcing replacements. Confirm the contact count matches the required 18 positions for the target design. Ensure the through-hole footprint aligns with the PCB layout specifications. Check that the polyamide housing rating meets the operational temperature requirements of the final application environment.

Headers, Male Pins Selection Notes

Select this model when a single-row, 18-position male header is required for through-hole mounting. The 2.54 mm pitch is standard for general electronics but must be verified against mating connector dimensions. Consider the tin plating finish if cost-effectiveness is prioritized over high-cycle wear resistance associated with gold finishes. Ensure the physical height and width constraints of the enclosure accommodate the connector profile.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik pin headers. The series offers various contact counts ranging from 1 to 36 positions. Different suffixes denote specific plating options, such as 'S' for tin or 'Z' for other finishes. The SL 11 097 designation typically refers to the housing style and contact arrangement within this product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 18-contact counts and through-hole mounting. Verify that alternative manufacturers offer matching 2.54 mm pitch and compatible housing dimensions. Ensure the replacement maintains the same tin-plated contact finish if oxidation resistance is critical for the application.
