SL 11 097 19 G

Headers, Male Pins Overview

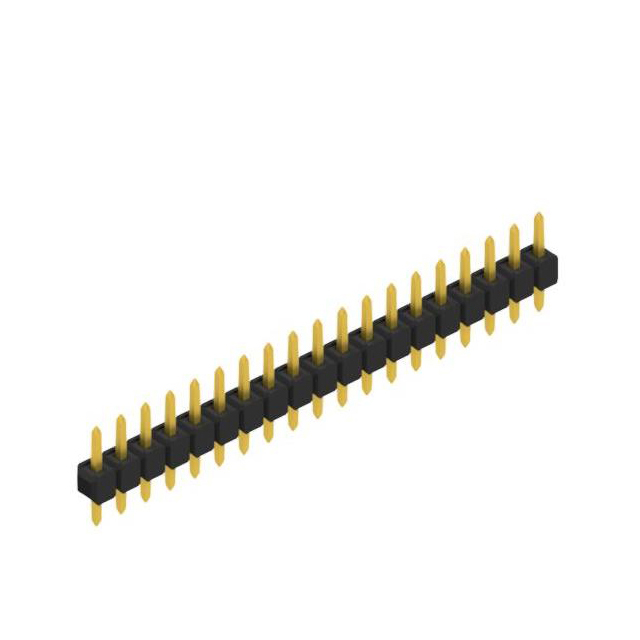

The SL 11 097 19 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 19-position configuration with a 2.54 mm (0.100 inch) pitch. The connector utilizes tin-plated copper-tin contacts and polyamide insulation rated for operation between -40°C and +163°C. Designed for through-hole PCB mounting, it offers a contact length of 8.10 mm for mating and 3.00 mm for column insertion.

Headers, Male Pins Feature Summary

• Single-row male pin header design for reliable electrical interconnection
• Through-hole mounting technology for secure PCB attachment
• Polyamide insulation material providing thermal stability up to 163°C

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Industrial control system signal routing
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact plating thickness and material composition. Ensure the selected variant matches the required contact count and pitch specifications for the target application. Cross-reference part numbers with official Fischer Elektronik documentation to avoid confusion with similar series components.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Consider the operating temperature range and insulation material compatibility with soldering processes. Verify that the physical dimensions fit within the available PCB space and that the contact finish meets corrosion resistance requirements for the environment.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series is characterized by standard spacing and robust construction suitable for various electronic assemblies. The specific model indicates a 19-position variant within this standardized product line, designed for consistent performance in commercial and industrial hardware.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik catalogs for direct substitutes within the SL 11 series or compatible families. Verify mechanical footprint and electrical ratings before substituting with generic equivalents.
