SL 11 097 19 S

Headers, Male Pins Overview

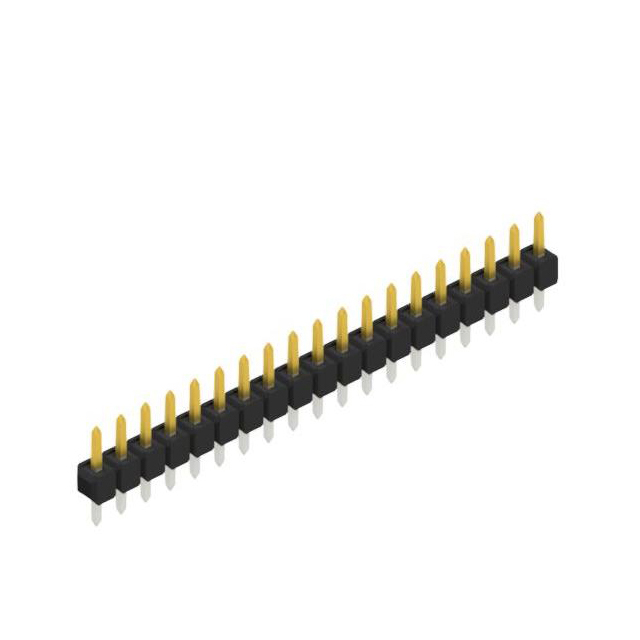

The SL 11 097 19 S is a male pin header connector manufactured by Fischer Elektronik. It features a single row of 19 contacts with a pitch of 2.54 mm (0.100 inches). The housing is constructed from glass-filled polyamide (PA 4.6), providing thermal stability within an operating temperature range of -40°C to +163°C. Contact materials consist of copper tin, finished with a tin plating thickness of 46 µm on the post section. Electrical ratings include a nominal voltage of 250 V AC and a nominal current of 3 A, with a test voltage of 2000 V. The component has a volume resistance of ≤5 mΩ and dimensions of 9.7 mm length, 3 mm width, and 3.9 mm height.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for PCB mounting
• Glass-filled polyamide insulation body for thermal resilience
• Tin-plated copper tin contacts ensuring reliable conductivity

Headers, Male Pins Applications

• General electronic interconnects
• PCB-to-PCB connections
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm contact finish and material specifications. Ensure compatibility with mating connectors regarding pitch and row count. Check RoHS compliance status if required for your application. Confirm mechanical fit within the assembly constraints using provided technical drawings.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required. Consider the 3 A current rating and 250 V AC voltage limits for circuit design. The PA 4.6 GF material suits applications requiring higher thermal performance than standard nylon. Verify that the 19-pin count matches the board layout requirements.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various pin counts and configurations for different PCB integration needs. The SL 11 097 variant specifically denotes a compact form factor suitable for space-constrained designs while maintaining robust electrical characteristics.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for direct equivalents in the SL 11 series with matching pin counts. Verify dimensional compatibility and electrical ratings before substituting with generic alternatives. Ensure mating connector interfaces align with the 2.54 mm pitch specification.

Headers, Male Pins FAQ

What is the insulating body material?

The insulating body is made of glass-filled polyamide (PA 4.6 GF).

What are the electrical ratings?

The nominal voltage is 250 V AC, and the nominal current is 3 A.
