SL 11 097 19 Z

Headers, Male Pins Overview

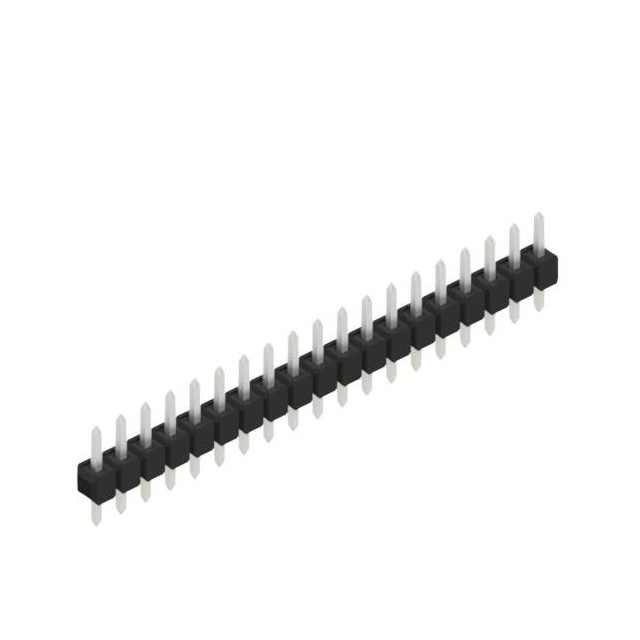

The SL 11 097 19 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and provides 19 positions for through-hole PCB mounting. The contacts are constructed from bronze material with a tin plating finish. The component belongs to the SL 11 097 series and is designed for reliable electrical interconnection in electronic assemblies.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single row arrangement with square contact shape
• Tin-plated bronze contacts for corrosion resistance

Headers, Male Pins Applications

• General purpose electronic circuit interconnections
• PCB-to-PCB or PCB-to-wire harness connections
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 19-position count and 2.54 mm pitch. Confirm the tin plating specification aligns with soldering process requirements. Ensure the through-hole package type is compatible with the target printed circuit board layout and manufacturing capabilities before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 19 positions is required. The 2.54 mm pitch is standard for many legacy and general-purpose designs. Consider the bronze contact material and tin finish for compatibility with standard lead-free or leaded soldering processes. Verify mechanical dimensions against available board space constraints.

Headers, Male Pins Part Context

This connector is part of the Fischer Elektronik SL 11 097 series, which offers various position counts. Similar parts include the SL 11 097 36 Z and SL 11 097 1 Z, differing primarily in the number of contacts while maintaining the same pitch and series characteristics. The series provides standardized spacing for consistent assembly practices.

Headers, Male Pins Replacement Considerations
