SL 11 097 2 G

Headers, Male Pins Overview

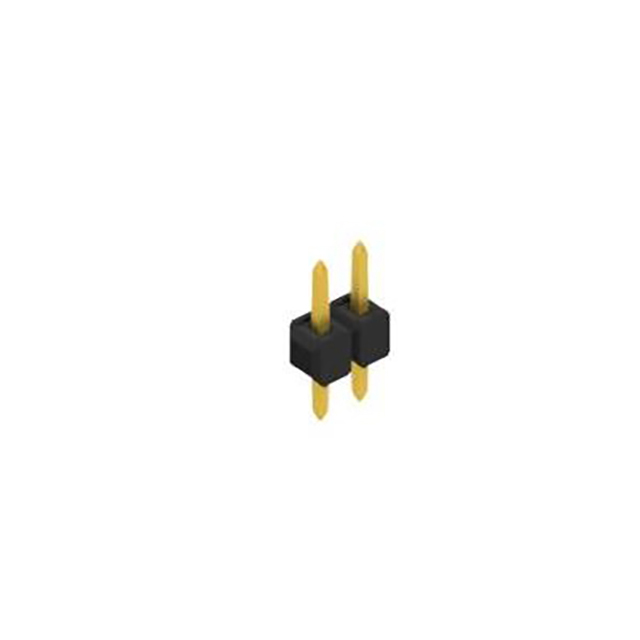

The SL 11 097 2 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row of two contacts with a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, the connector utilizes square-shaped pins made from copper-tin alloy. The contact surfaces are tin-plated to ensure reliable electrical connections. The insulating housing is constructed from polyamide (PA46), providing structural integrity and thermal stability for standard PCB assembly applications.

Headers, Male Pins Feature Summary

• Single-row male pin configuration designed for through-hole PCB mounting
• Tin-plated copper-tin alloy contacts ensuring corrosion resistance
• Polyamide (PA46) insulation material for stable dielectric properties

Headers, Male Pins Applications

• General-purpose PCB interconnections
• Board-to-board signal routing
• Wire-to-board attachment points

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and pitch specifications. Ensure that the required tin plating thickness meets the application's conductivity standards. Confirm compatibility with standard through-hole soldering profiles before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, two-position male header is required for direct PCB insertion. The 2.54 mm pitch ensures compatibility with standard ribbon cables and mating female connectors. Verify that the PA46 insulation rating aligns with the operating temperature range of the target electronic environment.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series offers various contact counts while maintaining consistent mechanical dimensions and pitch standards. This specific variant provides a minimal two-contact solution within the broader family of board-mount connectors.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, single-row layout, and through-hole termination style. Verify that alternative manufacturers offer identical tin-plated copper-tin contacts and compatible PA46 insulation materials for interchangeability.
