SL 11 097 20 G

Headers, Male Pins Overview

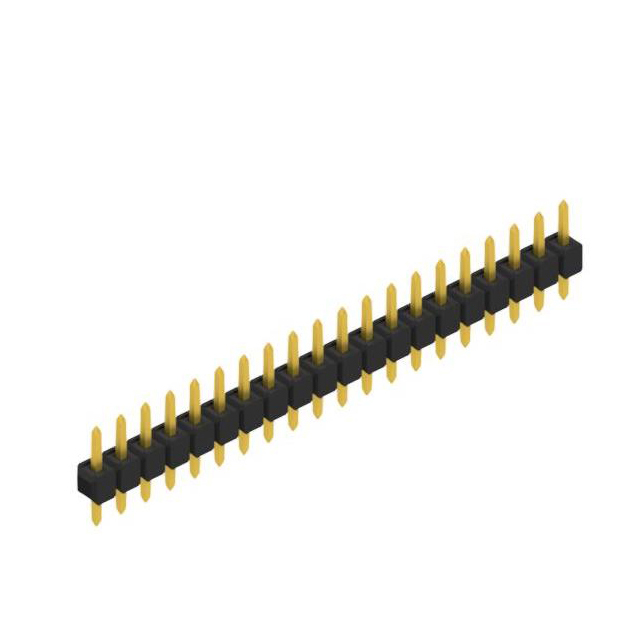

The SL 11 097 20 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 20 contacts arranged in one row. The connector utilizes through-hole mounting for secure PCB attachment. Contact materials consist of copper tin, with gold plating on the post surface to ensure reliable conductivity. The insulating body is constructed from polyamide (PA46), nylon 4/6, or glass-filled variants. Operating temperature ranges from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Gold-plated contact posts for enhanced corrosion resistance and signal integrity
• Thermally stable polyamide insulation supporting high-temperature environments

Headers, Male Pins Applications

• Industrial equipment control panels
• Machine design interconnects
• Precision electronic assemblies requiring robust mechanical stability

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'G' corresponds to the required gold contact finish, as other suffixes may indicate different plating options such as tin. Confirm the 20-contact count matches the design requirement, noting that this series offers varying pin counts up to 36 positions. Ensure the through-hole footprint aligns with the PCB layout specifications before ordering.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold-plated contacts is necessary for high-reliability applications. The 2.54 mm pitch is standard for general-purpose electronics, while the PA46 insulation provides superior thermal performance compared to standard nylon. Consider the physical dimensions of 9.7 mm length and 3.9 mm height for space-constrained enclosures.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered headers from Fischer Elektronik. The series is designed for industrial and machine applications, offering various contact counts and pitch options. The SL 11 097 variant specifically denotes the single-row configuration within this product line.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with matching 2.54 mm pitch and 20 contacts. Verify that alternative parts maintain the same gold-plated contact finish and polyamide insulation material to ensure compatibility with existing thermal and electrical requirements.
