SL 11 097 20 S

Headers, Male Pins Overview

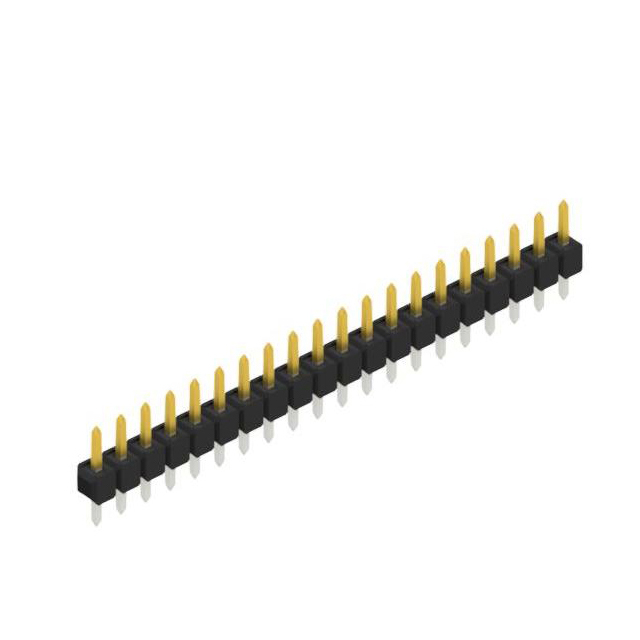

The SL 11 097 20 S is a male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features a single row with 20 contacts and a 2.54 mm (0.100 inch) pitch. The housing is constructed from polyamide (PA46), providing an insulation height of approximately 3.9 mm. The contacts are tin-plated copper alloy pins with a mating length of 8.10 mm. This component supports standard reflow soldering profiles up to 260°C for 10 seconds and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for reliable signal transmission
• Through-hole termination method ensuring secure mechanical attachment to printed circuit boards
• Polyamide insulation material offering thermal stability and electrical isolation
• Tin-plated contact surfaces compatible with standard surface mount assembly processes

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics module assembly
• Automotive electronic sub-systems
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's current datasheet to confirm plating thickness and material specifications. Ensure the ordering part number matches the required contact count and row configuration. Cross-reference the RoHS compliance status if environmental regulations apply to your production environment. Confirm that the lead-free soldering profile requirements align with the component's thermal ratings.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required for through-hole applications. Consider the physical dimensions, specifically the 3.9 mm height, to ensure adequate clearance on the PCB layout. Evaluate the thermal operating range of -40°C to +163°C against the environmental conditions of the final assembly. Compare contact counts within the SL 11 series to find the exact fit for the circuit design.

Headers, Male Pins Part Context

The SL 11 series represents Fischer Elektronik's line of precision-engineered male headers. These connectors are characterized by their compact form factor and robust construction using PA46 insulation. The series offers various contact counts and plating options to suit different industrial and commercial needs. The SL 11 097 variant specifically denotes a standardized footprint and dimension set within this product family.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik SL 11 series headers with identical pitch and row count but different suffixes indicating varied plating or packaging. Generic equivalents with 2.54 mm pitch and through-hole termination can be considered if mechanical dimensions and electrical ratings match precisely. Verify compatibility with existing assembly tools and soldering processes before switching suppliers.
