SL 11 097 20 Z

Headers, Male Pins Overview

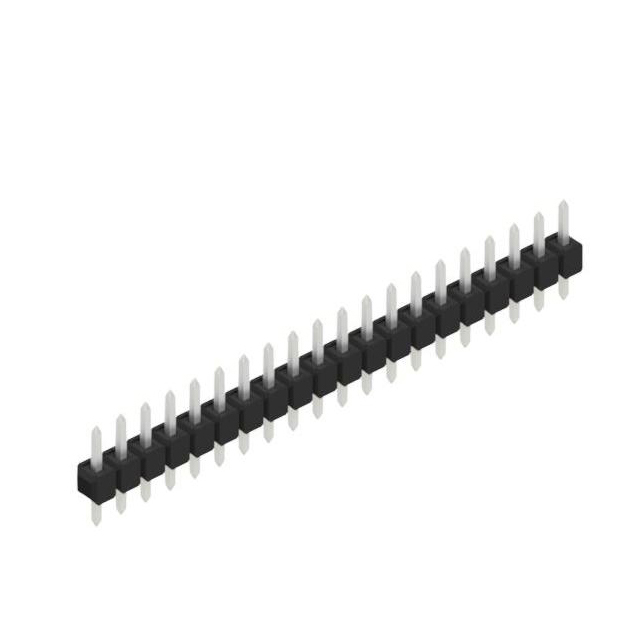

The SL 11 097 20 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains 20 positions. The connector is designed for through-hole mounting on printed circuit boards. The contacts are made of copper-tin alloy with a tin plating thickness of 157.5 µin (4.00 µm). The insulating housing is constructed from polyamide (PA46), ensuring durability and thermal stability. The total contact length measures 0.547 inches (13.90 mm), with a mating contact length of 0.319 inches (8.10 mm).

Headers, Male Pins Feature Summary

• Single-row configuration with square-shaped male pins for secure board insertion.
• Tin-plated copper-tin contacts provide reliable electrical conductivity and corrosion resistance.
• Polyamide (PA46) insulation offers structural integrity and heat resistance.
• Through-hole design ensures stable mechanical attachment to PCB substrates.

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring standardized interconnections.
• Industrial control systems utilizing through-hole mounting techniques.
• Consumer electronics hardware integration.

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 097 20 Z against official Fischer Elektronik documentation to confirm current availability and manufacturing status. Ensure that the required contact count, pitch, and mounting style match the design specifications. Cross-reference datasheets for material composition details, specifically the PA46 insulation and tin plating thickness, to guarantee compliance with environmental and performance requirements for the intended application.

Headers, Male Pins Selection Notes

Select this component when a single-row, 20-position male header with a 2.54 mm pitch is required for through-hole applications. Consider the physical dimensions, including the 0.110 inch insulation height and 0.547 inch total contact length, to ensure compatibility with enclosure constraints. Verify that the copper-tin contact material and tin plating meet the electrical and environmental standards of the target system.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of connectors from Fischer Elektronik, which specializes in precision electronic interconnection solutions. The series typically includes various pin counts and configurations tailored for different PCB mounting needs. The SL 11 097 20 Z represents a standard variant within this lineup, focusing on reliability and consistent performance in industrial and commercial electronic environments.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik's official cross-reference guides or distributor catalogs for verified substitute part numbers. Ensure any replacement maintains the same 2.54 mm pitch, 20-position count, and through-hole mounting style. Verify that alternative components match the original's contact material, plating thickness, and insulation properties to prevent compatibility issues.
