SL 11 097 21 Z

Headers, Male Pins Overview

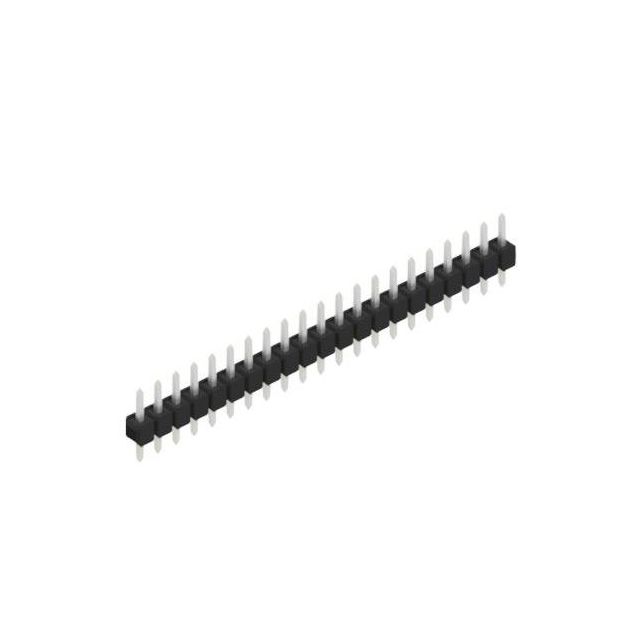

The SL 11 097 21 Z is a single-row, through-hole pin header manufactured by Fischer Elektronik. It features 21 contacts with a 0.100 inch (2.54 mm) pitch. The connector utilizes square male pins made of copper-tin alloy, plated with tin on the mating surface and column. Key dimensions include an overall contact length of 0.547 inches (13.90 mm), a mating contact length of 0.319 inches (8.10 mm), and a column length of 0.118 inches (3.00 mm). The insulator height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Precision-engineered compact design suitable for dense electronic assemblies.
• Through-hole mounting configuration ensures secure PCB attachment.
• Square pin shape provides stable mechanical connection during mating.

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly integration

Headers, Male Pins Procurement Notes

Verify the exact part number against official Fischer Elektronik documentation to ensure compatibility with specific PCB footprint requirements. Confirm that the tin plating thickness meets the intended environmental durability standards for the target application. Cross-reference the row count and pin quantity to prevent mismatching during procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 21-position header with a standard 2.54 mm pitch is required. Ensure the PCB layout accommodates the specified overall contact length and insulator height. Consider the through-hole technology constraints and verify that the mating device supports the square pin geometry for reliable engagement.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various contact counts and configurations designed for precision electronic connections. The SL 11 097 21 Z specifically addresses applications requiring a 21-pin interface within a compact form factor, maintaining consistency with the series' dimensional and material specifications.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik resources for direct substitutes within the SL 11 series or compatible alternatives. Verify that any replacement matches the 2.54 mm pitch, 21-contact count, and through-hole mounting style. Ensure material and plating specifications align with the original component's performance requirements.
