SL 11 097 23 S

Headers, Male Pins Overview

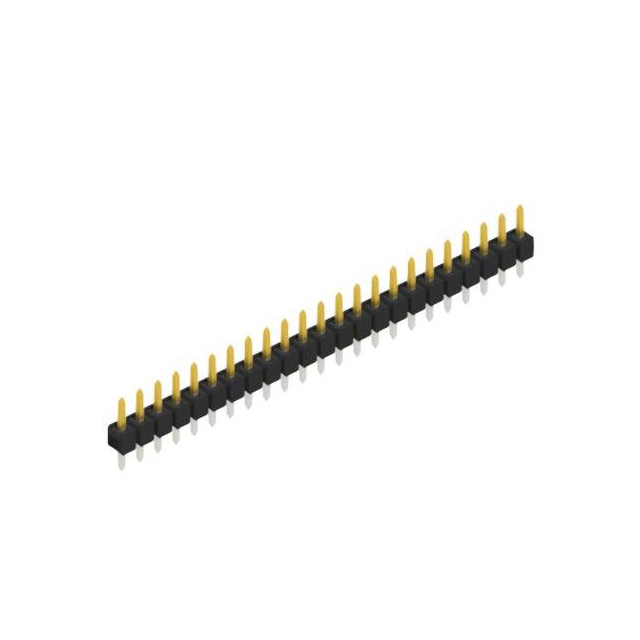

The SL 11 097 23 S is a male header connector from the Fischer Elektronik SL series. It features a single row of 23 contacts with a 0.635 mm (0.025 inch) pitch. The connector utilizes through-hole termination and has gold-plated contacts. It is designed for signal applications, offering reliable interconnection in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male header configuration
• Gold-plated contact surfaces for corrosion resistance
• Through-hole mounting technology

Headers, Male Pins Applications

• Signal processing circuits
• Compact electronic modules
• Industrial control interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates gold plating as per official datasheets. Confirm pin count matches 23 positions. Ensure compatibility with 0.635 mm pitch requirements. Check RoHS compliance status for your region. Validate thermal endurance ratings against soldering processes.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-density signal connection is required. The 0.635 mm pitch allows for tighter spacing than standard 2.54 mm headers. Gold plating ensures durability in frequent mating cycles. Verify board space constraints fit the single-row design.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of rectangular connectors. The series offers various pin counts and pitch options. Fischer Elektronik specializes in precision connectors for demanding environments. This model represents a specific variant within that broader product line.

Headers, Male Pins Replacement Considerations

Check for direct substitutes in the same SL 11 series with different pin counts. Verify if other manufacturers offer equivalent 0.635 mm pitch headers. Ensure mechanical dimensions and electrical ratings match exactly before substitution.
