SL 11 097 24 G

Headers, Male Pins Overview

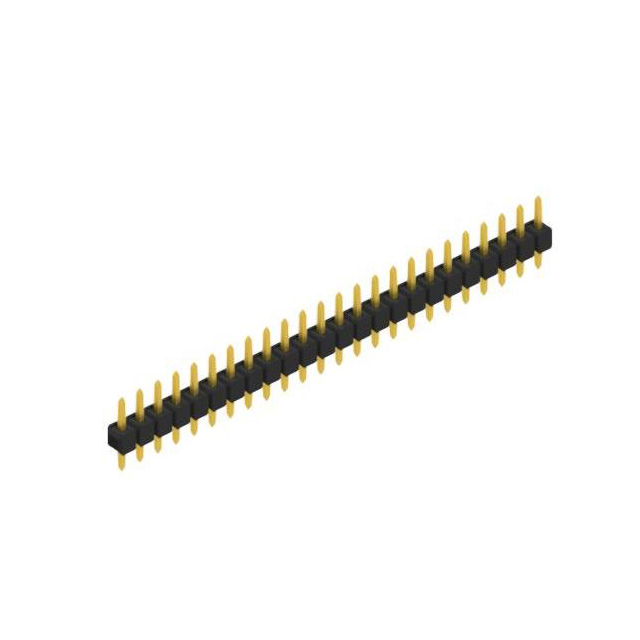

The SL 11 097 24 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm pitch spacing and provides 24 contacts for reliable electrical interconnection. Designed for through-hole mounting, this component utilizes a straight termination style suitable for standard PCB assembly processes. The connector belongs to the SL series, offering a robust mechanical structure for board-to-board or wire-to-board applications requiring consistent signal transmission.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standardized connectivity
• 2.54 mm pitch spacing ensures compatibility with common PCB footprints
• Through-hole soldering termination for secure mechanical fixation

Headers, Male Pins Applications

• General-purpose PCB interconnects
• Board-to-board signal routing
• Wire-to-board connections in electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific contact plating and material composition against the official datasheet before procurement. Confirm that the single-row, 24-position configuration matches the design requirements. Ensure the through-hole mounting style aligns with the manufacturing process capabilities. Cross-reference the manufacturer part number to avoid confusion with similar series variants.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required. Consider the 24-contact count for circuit density needs. Evaluate the through-hole mounting method against surface-mount alternatives if space constraints exist. Verify thermal and current ratings from the technical documentation to ensure suitability for the intended application environment.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL series of connectors, which are widely used in industrial and consumer electronics. The SL series offers various row counts and contact numbers to accommodate different design specifications. As a male pin header, it serves as the counterpart to female sockets or receptacles in mating connector systems.

Headers, Male Pins Replacement Considerations

Check for direct substitutes within the Fischer Elektronik SL series that match the 24-position count and 2.54 mm pitch. Ensure any replacement maintains the single-row male configuration and through-hole termination style. Verify dimensional compatibility with existing PCB layouts and mating components.
