SL 11 097 24 S

Headers, Male Pins Overview

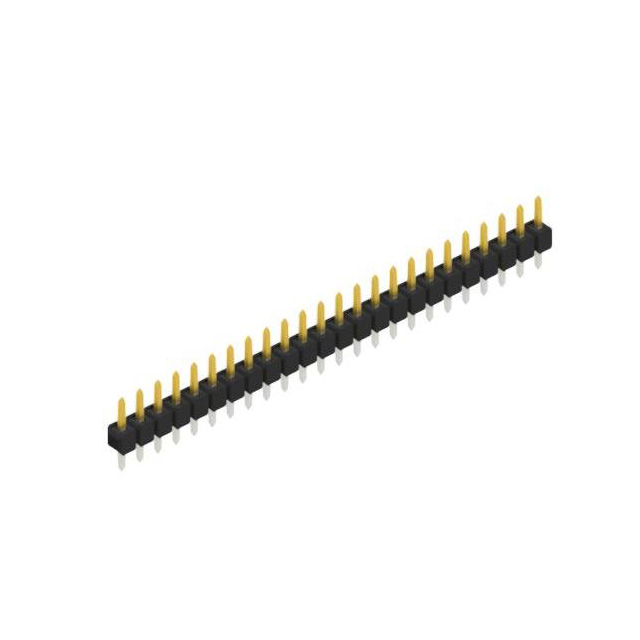

The SL 11 097 24 S is a male header connector from the Fischer Elektronik SL series. It features a single row of 24 contacts with a 2.54 mm pitch. The connector utilizes through-hole termination for PCB mounting. Contacts are made of copper alloy and feature selective gold plating to ensure reliable signal transmission. The insulating body is constructed from polyamide, providing structural integrity and thermal stability.

Headers, Male Pins Feature Summary

• Single row male header configuration
• Selective gold-plated contacts for conductivity
• Through-hole soldering termination
• Polyamide insulating body

Headers, Male Pins Applications

• General purpose PCB interconnections
• Signal routing in electronic assemblies
• Prototype development boards

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the model number '24' before ordering. Confirm that the selective gold plating specification aligns with your corrosion resistance requirements. Ensure the through-hole footprint dimensions on your PCB design match the manufacturer's mechanical drawing to guarantee proper fit and solder joint quality.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 24 positions is required. The 2.54 mm pitch is standard for many legacy and general-purpose designs. Choose this variant over tin-plated options if higher conductivity or better oxidation resistance is needed for the application environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik connectors. The series offers various contact counts and configurations. The 'S' suffix typically denotes specific plating or packaging variations within the product line. This series is designed for reliable board-to-board or cable-to-board connections.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2.54 mm pitch, single row, 24-position format, and male pin type. Verify that any alternative part supports through-hole mounting and has compatible insulating material properties. Cross-reference mechanical dimensions to ensure PCB footprint compatibility.
