SL 11 097 24 Z

Headers, Male Pins Overview

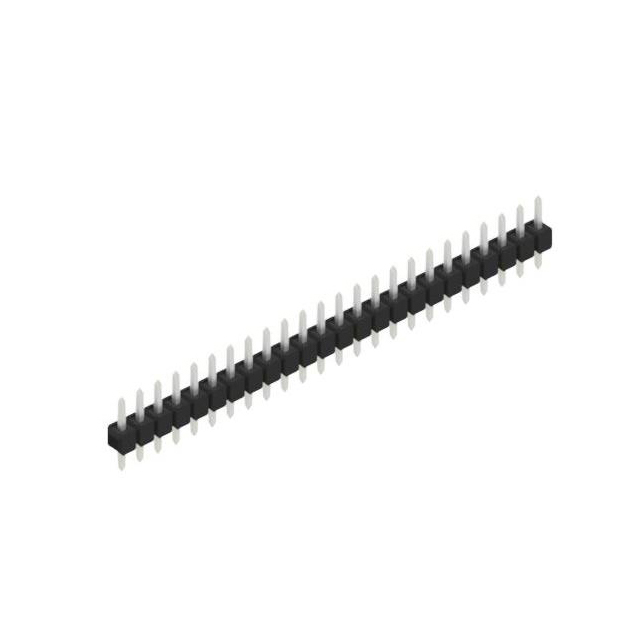

The SL 11 097 24 Z is a male header connector from Fischer Elektronik, featuring one row and 24 contacts with a 2.54 mm pitch. It utilizes through-hole mounting for PCB integration. The contacts are made of copper-tin alloy with a tin surface finish on the mating side (thickness 157.5 µin / 4.00 µm) and nickel-plated tin on the column side. The connector has a total contact length of 0.547 inches (13.90 mm), with a mating contact length of 0.319 inches (8.10 mm) and a column contact length of 0.118 inches (3.00 mm). Insulation height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Square-shaped pin configuration for secure mechanical engagement.
• Through-hole termination method ensures stable PCB attachment.
• Polyamide insulation material provides thermal stability up to 163°C.

Headers, Male Pins Applications

• General-purpose PCB interconnections.
• Signal transmission in electronic assemblies.
• Prototyping and development boards.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm the exact plating specifications and material composition. Ensure compatibility with mating female headers regarding pitch and contact geometry. Check RoHS compliance status if required by project regulations. Confirm package type matches procurement requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 24 positions and 2.54 mm spacing is required. Consider the square pin shape and through-hole mounting style for assembly constraints. Evaluate the operating temperature range (-40°C to +163°C) against environmental conditions. Compare contact length dimensions with available vertical clearance in the design.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik, designed for reliable electrical connections. The series offers various contact counts and configurations. Fischer Elektronik is a German manufacturer established in 1969, specializing in connectors and cooling solutions. This specific model represents a standard through-hole option within their rectangular connector portfolio.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult Fischer Elektronik directly or authorized distributors for equivalent alternatives with matching electrical and mechanical parameters.

Headers, Male Pins FAQ

What is the contact material for the SL 11 097 24 Z?

The contact material is copper-tin alloy.

What is the maximum operating temperature for this connector?

The connector supports an operating temperature range from -40°C to +163°C.
