SL 11 097 27 S

Headers, Male Pins Overview

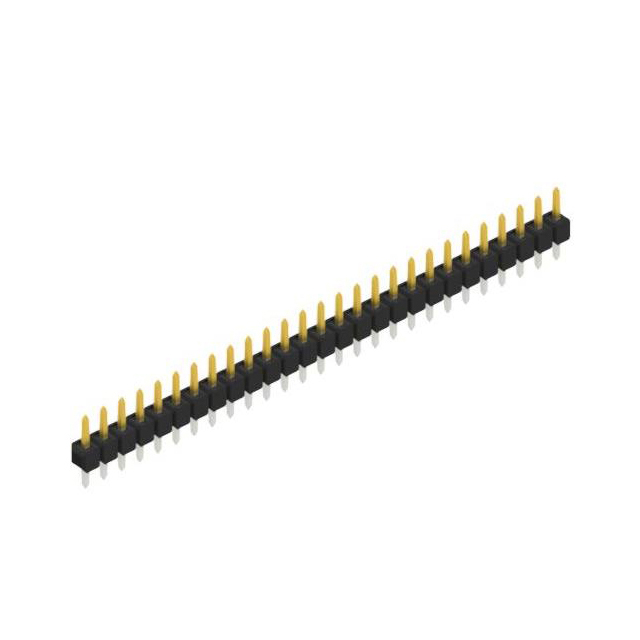

The SL 11 097 27 S is a male pin header connector manufactured by Fischer Elektronik. It features a single row of contacts with a pitch of 0.635 mm and contains 27 positions. The connector utilizes through-hole termination for PCB mounting. Contact materials consist of copper tin, with a tin plating finish on the posts. The insulating body is constructed from polyamide (PA46), nylon 4/6, glass-filled material, ensuring UL 94 V-0 flammability classification. It supports nominal currents up to 3 A at 250 V AC.

Headers, Male Pins Feature Summary

• Single-row male pin configuration designed for reliable electrical interconnection
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards
• Glass-filled polyamide insulation provides structural integrity and flame resistance

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring low-profile interconnects
• Industrial control systems utilizing standard signal transmission
• Consumer electronics manufacturing involving dense board layouts

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'S' aligns with the required contact finish and packaging format as defined in the official datasheet. Confirm that the 0.635 mm pitch matches the target footprint design. Ensure compliance with RoHS directives if applicable to the end product. Cross-reference the 27-position count against schematic requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a compact, single-row male header is required for signal routing. The 0.635 mm pitch allows for higher density compared to standard 2.54 mm headers. Consider the thermal stability of the PA46 insulation for reflow soldering processes. Evaluate the 3 A current rating against the load requirements of the connected circuits to ensure safe operation under all expected conditions.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series offers various contact counts and pitch options to suit different board space constraints. Components in this family typically share similar insulation materials and termination styles, facilitating standardized assembly processes across multiple product lines within the manufacturer's catalog.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing footprints if considering alternative manufacturers. Ensure that any replacement maintains the 0.635 mm pitch and 27-contact configuration to preserve mechanical and electrical interface integrity.
