SL 11 097 27 Z

Headers, Male Pins Overview

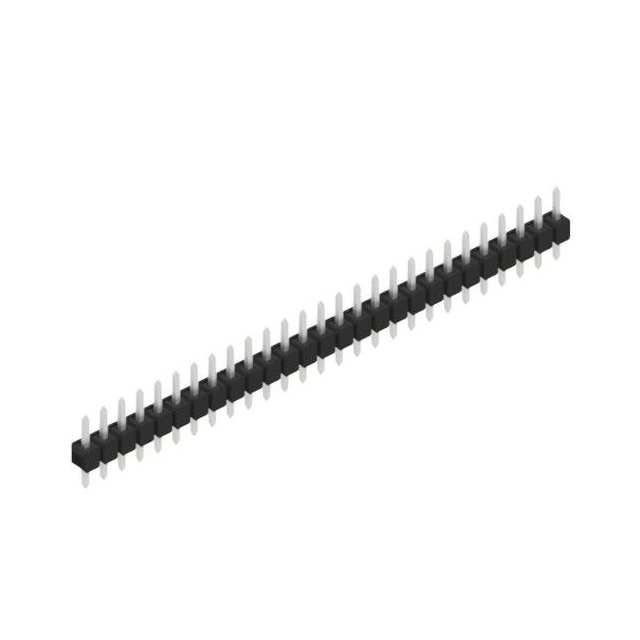

The SL 11 097 27 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch and provides 27 positions. The connector utilizes Polyamide (PA46), glass-filled nylon for the insulating body, ensuring structural integrity. Contact surfaces are tin-plated with a thickness of at least 0.2 µm over nickel. Designed for through-hole mounting on PCBs, it operates within a temperature range of -40°C to +163°C and withstands soldering conditions of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Constructed with glass-filled PA46 insulation for mechanical stability
• Tin-plated contacts ensure reliable electrical connectivity
• Supports high-temperature soldering processes up to 260°C

Headers, Male Pins Applications

• Through-hole PCB assembly
• Electronic signal interconnection
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer datasheet to confirm plating specifications and material composition. Ensure the required contact count matches the 27-position configuration. Confirm that the operating temperature range meets the environmental requirements of the target application before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header with a 0.635 mm pitch is required. The glass-filled PA46 insulation offers superior thermal resistance compared to standard materials. Verify compatibility with mating connectors regarding contact length and alignment tolerances.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series is characterized by compact dimensions and robust construction suitable for dense PCB layouts. Similar parts in the series vary primarily by position count and contact plating options.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitutes within the SL 11 series. Verify dimensional compatibility and electrical ratings before substituting with generic equivalents.
