SL 11 097 28 G

Headers, Male Pins Overview

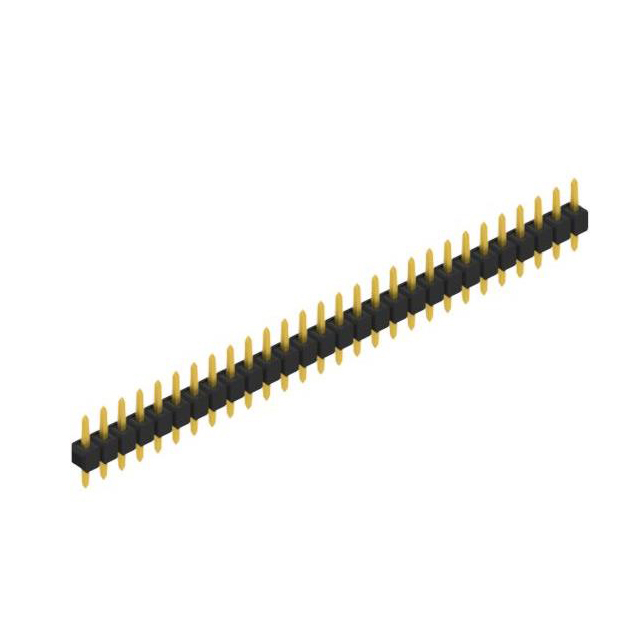

The SL 11 097 28 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features 28 contacts with a 2.54 mm pitch, designed for through-hole straight PCB mounting. The contact material is copper tin, with gold plating on the post and nickel-tin on the mating interface. Insulation is provided by glass-filled polyamide (PA46). The operating temperature range spans from -40°C to +163°C, supporting soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row configuration with 28 positions for reliable board-to-board or wire-to-board connections
• Gold-plated contact posts ensure stable electrical performance and corrosion resistance
• Glass-filled polyamide insulation offers mechanical stability and thermal endurance
• Through-hole straight design facilitates secure PCB integration

Headers, Male Pins Applications

• Industrial control systems requiring robust signal transmission
• Consumer electronics utilizing standard 2.54 mm spacing
• Test and measurement equipment interfaces
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 097 28 G against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with existing PCB footprint dimensions and insertion depth requirements. Cross-reference insulation material grades and temperature ratings with application environmental constraints before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a 28-position single-row header is required with high-temperature tolerance up to 163°C. The gold-plated posts are suitable for applications demanding low contact resistance and durability. Verify that the 2.54 mm pitch aligns with the target circuit board layout and that through-hole mounting methods are compatible with the assembly process.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik, designed for general-purpose interconnect solutions. The series emphasizes reliability in industrial and commercial environments. The SL 11 097 28 G variant specifically addresses needs for higher density connections within standard spacing constraints, offering a balance of electrical performance and mechanical strength.
