SL 11 097 28 S

Headers, Male Pins Overview

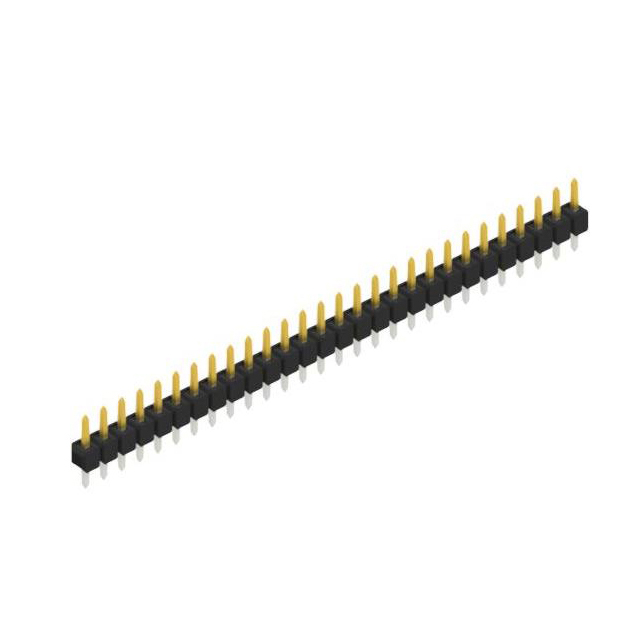

The Fischer Elektronik SL 11 097 28 S is a single-row through-hole pin header connector featuring 28 contacts with a 2.54 mm (0.100 inch) pitch. It utilizes square male pins made of copper-tin alloy, plated with tin to a thickness of 157.5 µin (4.00 µm). The insulating body is constructed from polyamide PA46. Key dimensions include a mating contact length of 0.319 inches (8.10 mm), a post contact length of 0.118 inches (3.00 mm), and an overall contact length of 0.547 inches (13.90 mm). The insulation height measures 0.110 inches (2.80 mm).

Headers, Male Pins Feature Summary

• Single-row configuration for compact board-to-board or wire-to-board interconnections.
• Through-hole mounting design ensures secure mechanical attachment to printed circuit boards.
• Tin-plated copper-tin contacts provide reliable electrical conductivity and corrosion resistance.

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system signal routing
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's official datasheet to confirm plating specifications and material composition. Ensure compatibility with mating connectors regarding pitch and row count. Cross-reference the Fischer Elektronik part number SL 11 097 28 S with authorized distributor catalogs to validate current availability and authenticity before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 28-position header with 2.54 mm spacing is required for through-hole applications. Consider the thermal stability of the PA46 insulation and the tin plating thickness for soldering processes. Evaluate spatial constraints against the specified overall contact length and insulation height to ensure proper fit within the target enclosure or assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered pin headers from Fischer Elektronik. The series offers various contact counts and configurations designed for robust electronic connections. The SL 11 097 variant specifically denotes a standard version within this lineup, characterized by its straight pin orientation and durable construction suitable for repeated assembly cycles.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik headers within the SL 11 family sharing identical pitch, row count, and mounting style. Verify that alternative parts match the 2.54 mm spacing and 28-contact requirement. Ensure any replacement maintains compatible contact plating and insulation material properties for equivalent performance.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are manufactured from copper-tin alloy.

Is this connector suitable for high-temperature environments?

The PA46 insulation material provides thermal stability, but specific operating limits should be confirmed via the official datasheet.
