SL 11 097 28 Z

Headers, Male Pins Overview

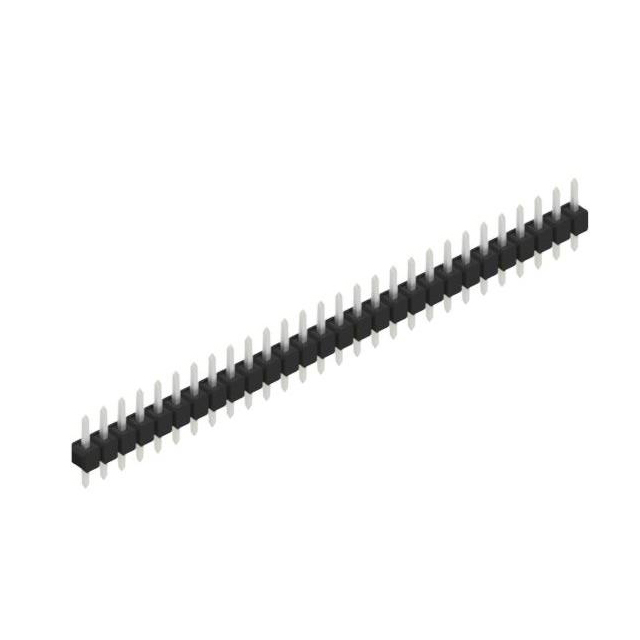

The SL 11 097 28 Z is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and provides 28 positions. The contacts are tin-plated copper alloy pins with a mating length of 0.319 inches (8.10 mm) and a post length of 0.118 inches (3.00 mm). The total contact length is 0.547 inches (13.90 mm). The housing is made of polyamide (PA46), offering an insulation height of 0.110 inches (2.80 mm). The connector is designed for through-hole mounting on PCBs.

Headers, Male Pins Feature Summary

• Precision-engineered compact design suitable for space-constrained applications
• Single-row configuration with square-shaped tin-plated contacts
• Polyamide (PA46) insulation material for reliable performance

Headers, Male Pins Applications

• PCB interconnection in electronic assemblies
• Signal transmission in industrial equipment
• Connector solutions for precision instrumentation

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 097 28 Z against official Fischer Elektronik documentation to confirm pin count, pitch, and plating specifications. Ensure compatibility with mating female connectors regarding contact dimensions and insulation height. Check for RoHS compliance status if required by project standards. Confirm package type and availability through authorized distributors.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 0.635 mm pitch and 28 positions is required. Consider the through-hole mounting style and PA46 insulation material. Evaluate the tin-plated contact finish for solderability and corrosion resistance. Compare physical dimensions including overall length and width against board layout constraints.

Headers, Male Pins Part Context

The SL 11 series from Fischer Elektronik represents a line of precision male headers. These connectors are characterized by their compact form factor and reliable electrical connections. The SL 11 097 variant specifically denotes a standard size within this family, often used in general-purpose electronic applications requiring robust PCB-to-PCB or cable-to-board connectivity.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik's official cross-reference guides for direct substitutes. Verify that any alternative maintains the same 0.635 mm pitch, 28-position count, and through-hole mounting characteristics. Ensure mechanical dimensions and contact materials match to guarantee proper fit and function.
