SL 11 097 29 G

Headers, Male Pins Overview

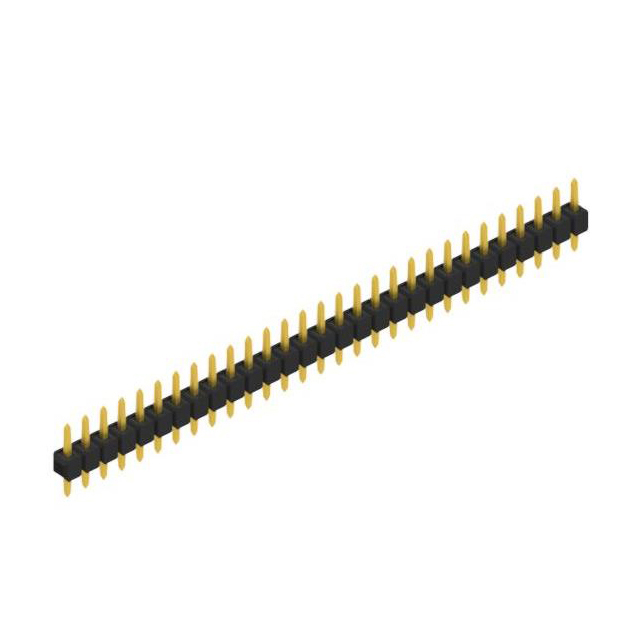

The SL 11 097 29 G is a single-row male pin header connector manufactured by Fischer Elektronik. It features 29 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole PCB mounting. The contacts are tin-plated copper alloy pins with a mating contact length of 0.213 inches and a column length of 0.118 inches. The insulating body is constructed from PA 4.6 nylon, providing an insulation height of 0.110 inches. The total contact length measures 0.441 inches. This component supports a nominal voltage of 250 V AC and a nominal current of 3 A, with a test voltage rating of 2000 V.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB integration
• Tin-plated square male pin contacts for reliable signal transmission
• PA 4.6 insulating body material ensuring thermal stability

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control panel wiring harnesses
• Consumer electronics assembly modules

Headers, Male Pins Procurement Notes

Verify the specific part number suffix to confirm plating specifications and contact geometry. Ensure compatibility with mating socket connectors regarding pitch and row count. Check datasheet for reflow soldering temperature profiles to prevent insulation damage during assembly processes.

Headers, Male Pins Selection Notes

Select this component when a 29-position single-row header is required for standard 2.54 mm pitch applications. Consider the 3 A current rating and 250 V voltage limits against circuit requirements. Evaluate the through-hole mounting style against available board space and mechanical stress constraints.

Headers, Male Pins Part Context

This connector belongs to the SL 11 series of rectangular headers from Fischer Elektronik. The series offers various position counts and contact configurations for diverse PCB layout needs. It is part of a broader range of interconnect solutions including sockets and cable assemblies.

Headers, Male Pins Replacement Considerations

Cross-reference with other Fischer Elektronik SL 11 series variants having identical 29-position counts and 2.54 mm pitch. Verify that alternative suppliers offer matching contact lengths and insulation heights for direct replacement.
