SL 11 097 29 S

Headers, Male Pins Overview

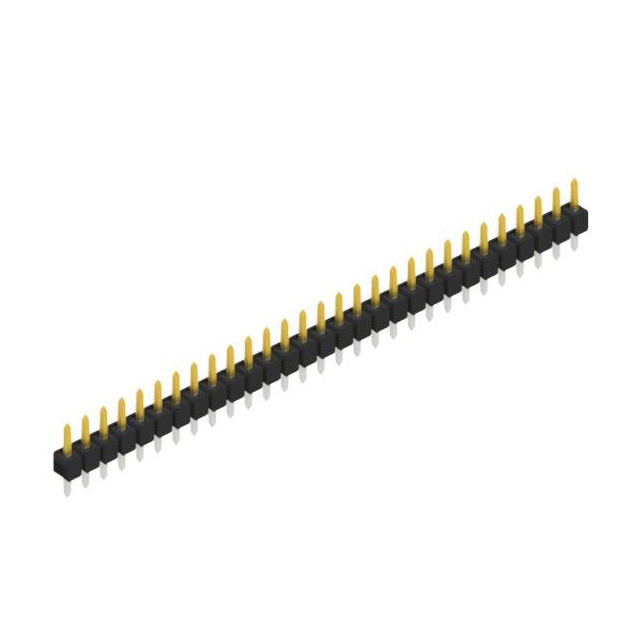

The SL 11 097 29 S is a single-row male header connector manufactured by Fischer Elektronik. It features a 29-position configuration with a 0.100-inch (2.54mm) pitch, designed for through-hole mounting on printed circuit boards. The contacts are tin-plated copper pins with a mating contact length of 0.213 inches and a post length of 0.118 inches. The connector utilizes polyamide insulation rated UL 94 V-0 and supports soldering temperatures up to 260°C for 10 seconds. Operating temperature ranges from -40°C to +163°C.

Headers, Male Pins Feature Summary

• Through-hole mounting design for secure PCB integration
• Tin-plated square pin contacts for reliable electrical connection
• Polyamide insulation material with UL 94 V-0 flame rating

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control board assembly
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates tin plating as per official datasheets. Confirm the 29-pin count matches the required circuit design. Ensure through-hole compatibility with the target PCB layout. Check RoHS compliance status if required by project specifications. Validate thermal resistance ratings against soldering process parameters.

Headers, Male Pins Selection Notes

Select this component when a 29-position male header is required for through-hole applications. Consider the 2.54mm pitch standard for compatibility with existing connectors. Evaluate the operating temperature range for environmental suitability. Assess the mechanical stability provided by the polyamide housing. Compare contact material requirements against corrosion resistance needs.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik headers. The series offers various pin counts and plating options. Similar models include SL 11 097 9 G and SL 11 097 35 S. The series is designed for robust electronic connections in demanding environments.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include SL 11 097 29 Z or SL 11 097 29 G, depending on required plating. Verify pin count and pitch compatibility before substitution. Ensure mechanical dimensions match the original design constraints.
