SL 11 097 29 Z

Headers, Male Pins Overview

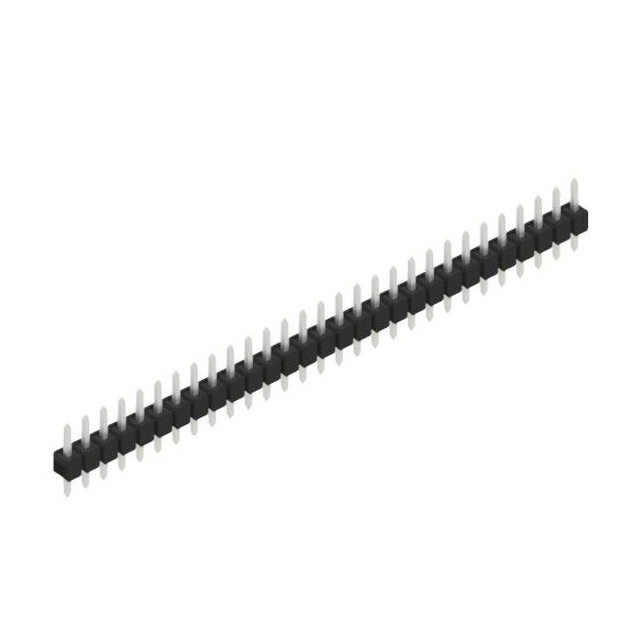

The SL 11 097 29 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 29 positions with a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, the connector utilizes square pins made of copper-tin alloy. The contact surfaces are finished with tin plating to ensure reliable electrical connections. The housing is constructed from polyamide (PA46), providing structural integrity and thermal stability.

Headers, Male Pins Feature Summary

• Single-row configuration with 29 male pins
• Through-hole PCB mounting design
• Tin-plated copper-tin contacts
• Polyamide (PA46) insulating body

Headers, Male Pins Applications

• General-purpose PCB interconnections
• Signal routing in electronic assemblies
• Prototype development boards

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's official datasheet to confirm exact plating thickness and material specifications. Ensure the required pin count matches the 29-position variant. Cross-reference the RoHS compliance status directly with the current product documentation before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Confirm that the operating temperature range aligns with system requirements. Verify that the contact length and insertion depth are compatible with the target PCB stack-up and mating connector specifications.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series offers various pole counts and row configurations. The SL 11 097 29 Z specifically denotes a 29-position variant within this standardized line of rectangular male headers designed for robust electronic interconnects.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik's official cross-reference tools or distributor databases for verified substitute part numbers. Do not assume generic equivalents match the specific mechanical dimensions or plating requirements without direct datasheet confirmation.
