SL 11 097 30 G

Headers, Male Pins Overview

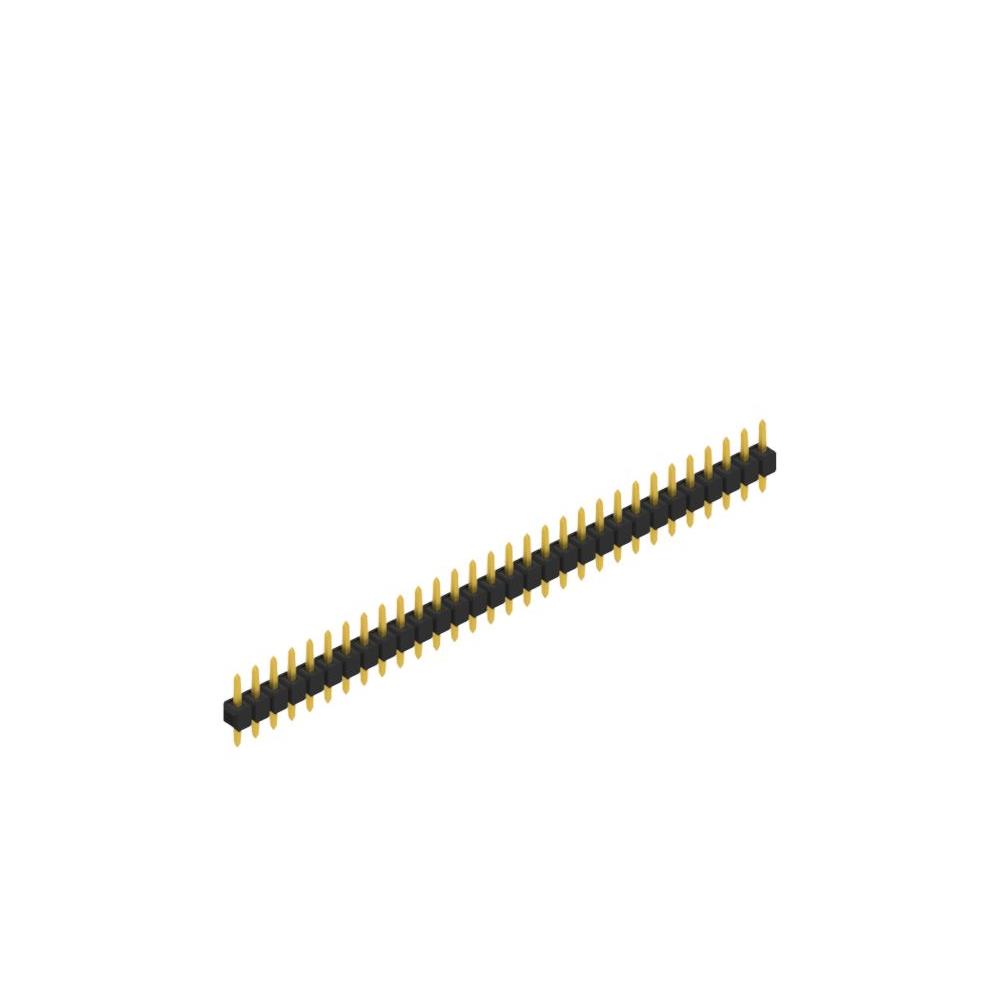

The SL 11 097 30 G is a single-row male pin header connector from the Fischer Elektronik SL 11 series, designed for through-hole PCB mounting. It features 30 positions with a standard 2.54 mm (0.100 inch) pitch. The contacts are tin-plated copper alloy pins with a mating length of approximately 3.00 mm and an insertion depth of 3.00 mm. The housing is constructed from polyamide (PA46), offering thermal stability up to 163°C and resistance to soldering temperatures of 260°C for 10 seconds. This component provides reliable electrical interconnection in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for straightforward PCB integration
• Tin-plated contact surfaces ensuring corrosion resistance and conductivity
• Polyamide insulation material supporting high-temperature processing

Headers, Male Pins Applications

• General-purpose printed circuit board interconnections
• Industrial control system signal routing
• Consumer electronics assembly modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' corresponds to the required tin plating specification against official Fischer Elektronik datasheets. Confirm that the 30-position count matches the design requirement, as this series offers various pole counts. Ensure compatibility with mating sockets from the same SL 11 family to guarantee proper mechanical fit and electrical performance.

Headers, Male Pins Selection Notes

Select this part when a single-row, 2.54 mm pitch male header is required for through-hole applications. The tin-plated finish suits general environments where gold plating is unnecessary. Consider the 30-position count specifically; if different pole counts are needed, choose other variants within the SL 11 097 series. Verify thermal ratings align with the assembly's reflow or wave soldering profile.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 series of rectangular connectors. The series is characterized by its robust construction and standardized 2.54 mm pitch, widely used in European industrial electronics. The SL 11 097 variant specifically denotes a particular housing size optimized for densities ranging from small to medium pin counts, maintaining consistent mechanical dimensions across the range.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other SL 11 series headers with identical 2.54 mm pitch and 30 positions, such as SL 11 097 30 S or SL 11 097 30 Z, provided the contact plating difference is acceptable. Cross-brand replacements must match the 2.54 mm pitch, single-row male type, and similar overall height constraints.
