SL 11 097 30 S

Headers, Male Pins Overview

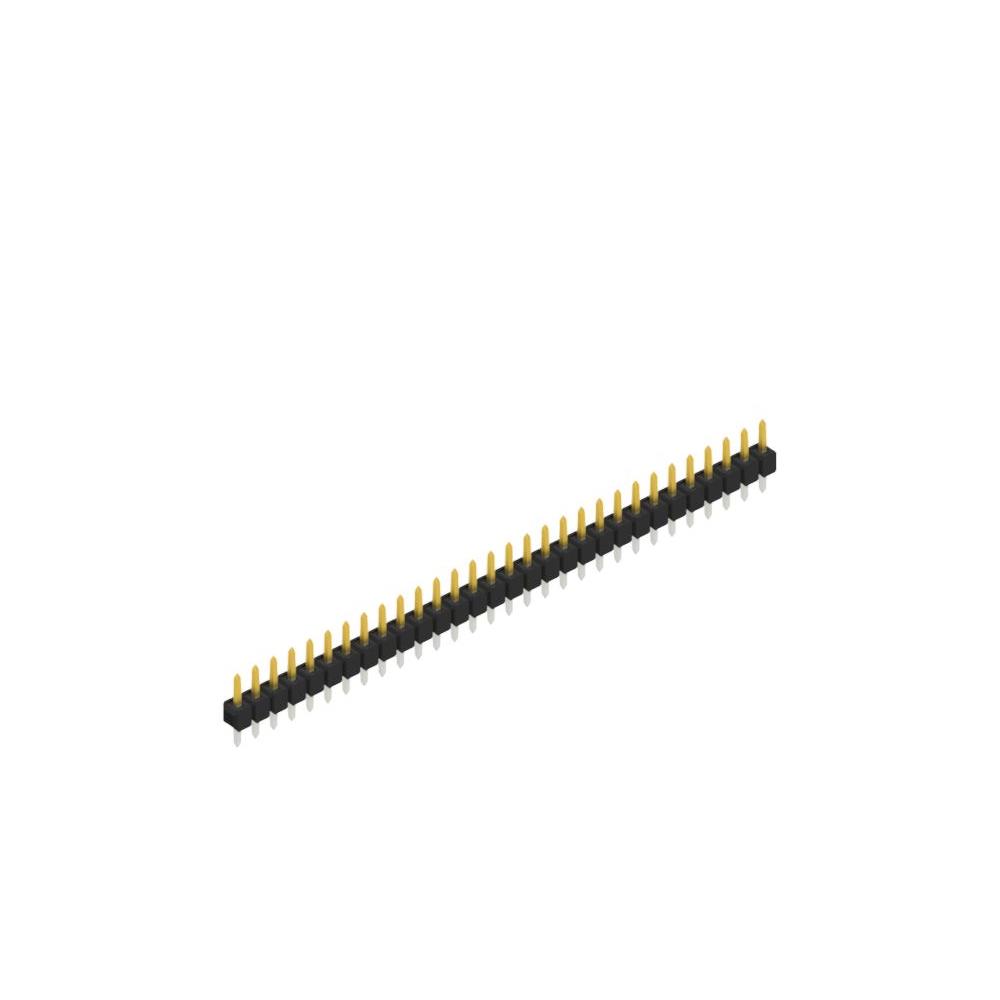

The SL 11 097 30 S is a single-row, through-hole male pin header manufactured by Fischer Elektronik. It features 30 contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes square-shaped pins made of copper-tin alloy, plated with tin on the mating surface and column. Key dimensions include a contact length of 0.213 inches (5.40 mm) for mating and 0.118 inches (3.00 mm) for the column, resulting in an overall contact length of 0.441 inches (11.20 mm). The insulator height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row straight pin header design for through-hole PCB mounting.
• Square contact shape ensures secure mechanical retention.
• Tin-plated copper-tin alloy contacts provide reliable conductivity.
• Polyamide insulation offers thermal stability up to 163°C.

Headers, Male Pins Applications

• Board-to-board interconnections.
• Wire-to-board connections.
• General electronic circuit assembly.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against official Fischer Elektronik documentation to confirm plating specifications and material composition. Ensure compatibility with mating connectors regarding pitch and row configuration. Confirm that the through-hole mounting style aligns with the target printed circuit board layout requirements.

Headers, Male Pins Selection Notes

Select this component when a 30-position single-row male header is required. The 2.54 mm pitch is standard for general-purpose electronics. Consider the operating temperature range of -40°C to +163°C for environmental suitability. Verify that the square pin profile meets the mechanical constraints of the mating interface.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series includes various configurations with different contact counts and plating options, such as gold or tin finishes. The SL 11 097 30 S represents a specific variant within this family, distinguished by its 30-contact count and tin plating.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Cross-reference with other Fischer Elektronik headers in the SL 11 series if alternative contact counts or plating types are acceptable.
