SL 11 097 30 Z

Headers, Male Pins Overview

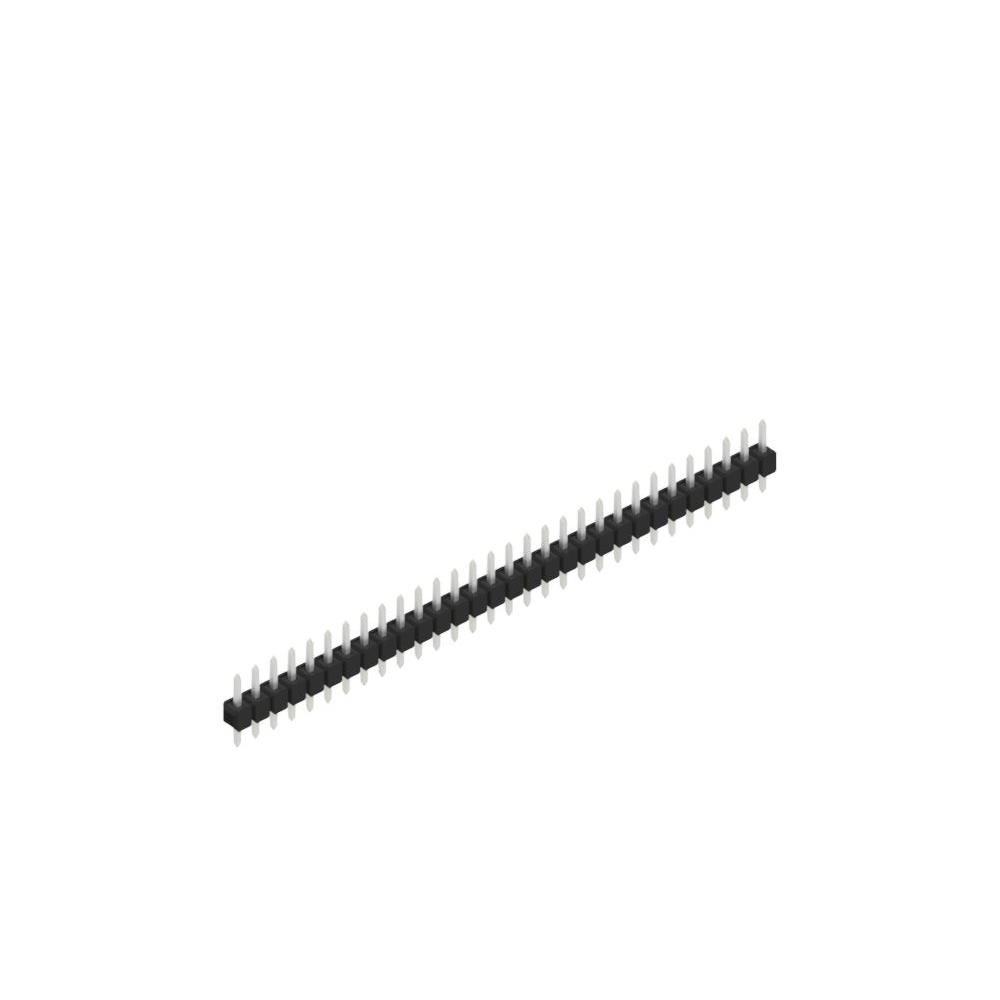

The SL 11 097 30 Z is a single-row, through-hole male pin header manufactured by Fischer Elektronik. It features 36 contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes square pins made of copper-tin alloy with tin plating. Key dimensions include a mating contact length of 8.10 mm, a post length of 3.00 mm, and an overall contact length of 13.90 mm. The insulation height is 2.80 mm, constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row straight pin header design for through-hole PCB mounting.
• Square pin geometry ensures secure mechanical retention within the socket.
• Tin-plated copper-tin alloy contacts provide reliable electrical conductivity.
• Polyamide insulation offers thermal stability and UL94 V-0 flammability rating.

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies.
• Wire-to-board connections requiring high reliability.
• Industrial control systems operating within specified temperature ranges.

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and pitch. Confirm that the tin plating thickness meets application requirements for solderability and corrosion resistance. Ensure the polyamide insulation material is compatible with the intended thermal environment and regulatory standards such as UL94 V-0.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Consider the 3A current rating and 250VAC voltage rating for circuit compatibility. Evaluate the -40°C to +163°C operating temperature range against environmental conditions. The square pin shape dictates mating socket compatibility.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL series of PCB connectors. The series includes various configurations with different contact counts and pitches. The SL 11 097 30 Z represents a specific variant within the male pin header category, designed for robust board-level interconnects.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch and 36 positions, such as the SL 11 139 36 Z. Verify that alternative parts maintain the same through-hole mounting style, square pin profile, and tin-plated contact finish to ensure interchangeability.
