SL 11 097 31 S

Headers, Male Pins Overview

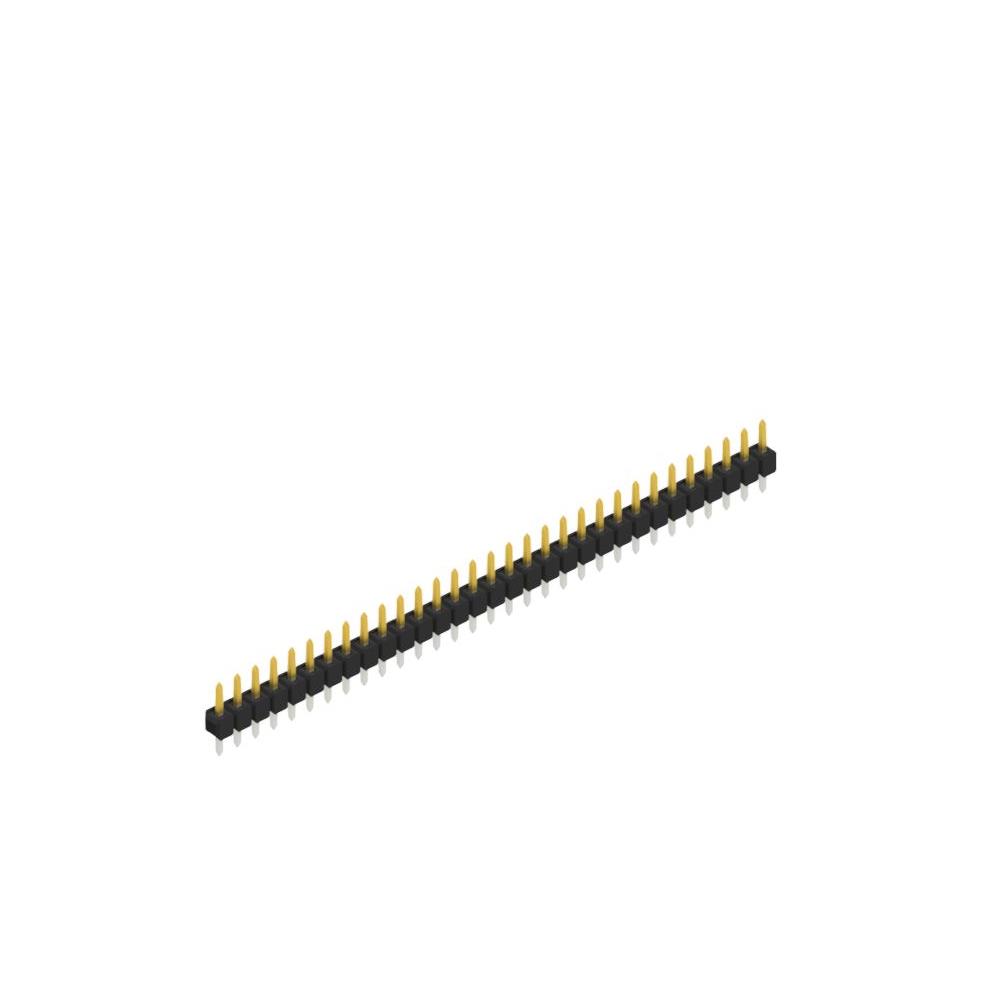

The SL 11 097 31 S is a single-row male header connector from the Fischer Elektronik SL 11 series. It features a 0.635 mm (0.025 inch) contact pitch and contains 31 positions. The connector utilizes square pin contacts with tin plating on both the mating and column surfaces. Constructed with a polyamide (PA46) insulator, it supports through-hole mounting. The assembly includes a total contact length of 11.20 mm, with a mating contact length of 5.40 mm and a column contact length of 3.00 mm.

Headers, Male Pins Feature Summary

• Precision-engineered compact design suitable for space-constrained electronic assemblies
• Robust construction using polyamide insulation material for thermal stability
• Square pin contact geometry ensures secure mechanical retention during mating

Headers, Male Pins Applications

• General-purpose PCB interconnections
• Industrial control module interfaces
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's official datasheet to confirm exact plating thickness and material composition details. Ensure the ordering part number matches the required contact count and pitch specifications precisely before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row configuration with 0.635 mm pitch is required. Consider the through-hole mounting style and PA46 insulation properties for environmental compatibility. Confirm that the 31-position count aligns with the circuit interface requirements.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of male headers produced by Fischer Elektronik. The series is characterized by its precision engineering and compact form factor, designed for reliable electrical connections in various electronic applications requiring standardized spacing.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitutes within the SL 11 family with differing contact counts. Verify cross-compatibility with other manufacturers' 0.635 mm pitch headers only if mechanical dimensions and electrical ratings are confirmed identical.
