SL 11 097 31 Z

Headers, Male Pins Overview

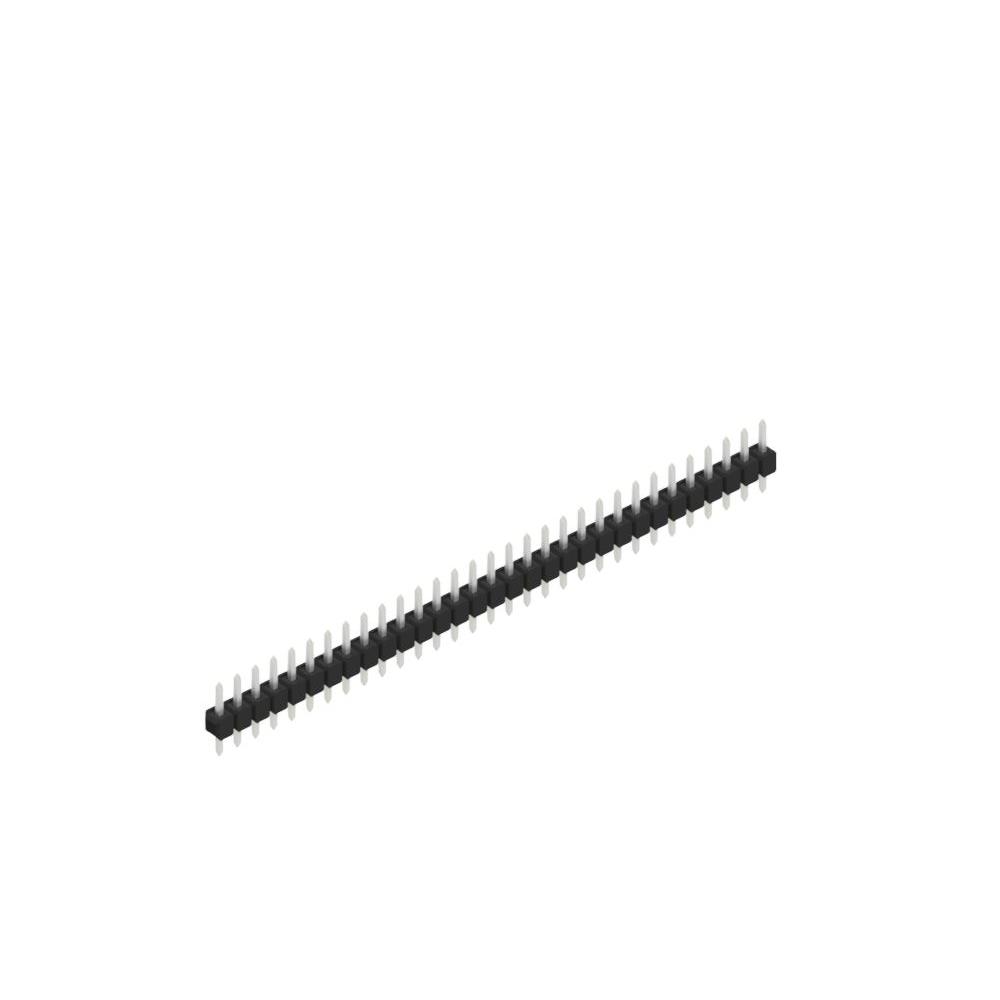

The SL 11 097 31 Z is a male header connector from the Fischer Elektronik SL 11 series. It features a single row of 31 contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes square pin contacts made of copper-tin, plated with tin on both the mating and sleeve surfaces. Constructed with polyamide (PA46) insulation, it is designed for through-hole PCB mounting. The component supports a nominal voltage and current ratings typical for this series, operating within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Precision-engineered compact design suitable for space-constrained applications
• Robust tin-plated copper-tin contacts ensure reliable electrical connectivity
• High-temperature resistant PA46 insulation material for thermal stability

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring reliable interconnection
• Industrial control systems utilizing standard 2.54 mm pitch headers
• Consumer electronics manufacturing with through-hole mounting requirements

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the '31' designation in the model number. Confirm that the tin plating specification aligns with your solderability and corrosion resistance requirements. Ensure the through-hole footprint dimensions correspond to your PCB layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this part when a single-row male header with exactly 31 positions is required. Compare against other SL 11 variants if different contact counts or plating options like gold are needed. Consider the operating temperature range and insulation material properties relative to your environmental conditions.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts ranging from 1 to 36 positions. The 'Z' suffix typically indicates specific plating or packaging attributes within the manufacturer's nomenclature system.

Headers, Male Pins Replacement Considerations

Direct substitutes include other SL 11 series parts with identical 2.54 mm pitch and single-row configuration. Verify mechanical compatibility with existing PCB footprints and mating connectors before substitution.
