SL 11 097 32 G

Headers, Male Pins Overview

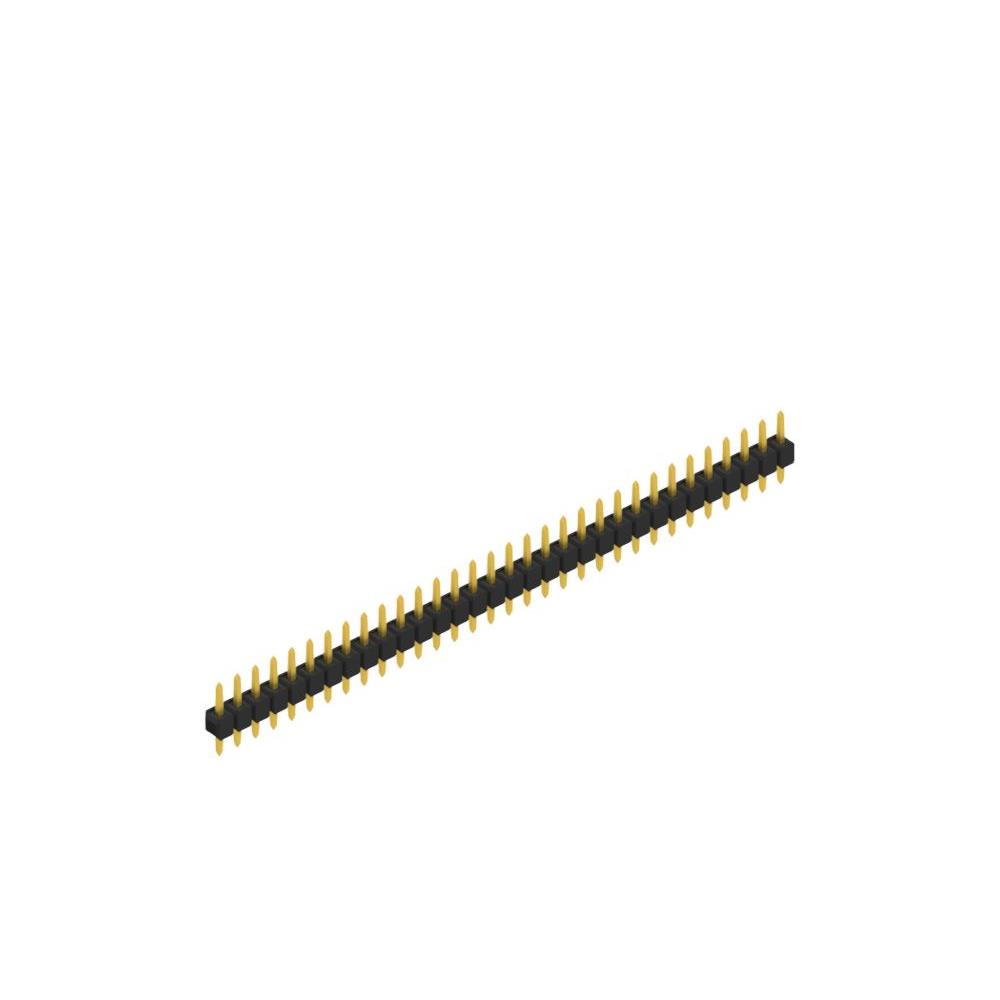

The SL 11 097 32 G is a single-row male header connector manufactured by Fischer Elektronik. It features a 32-position configuration with a 2.54 mm (0.100 inch) contact pitch. The component utilizes copper-tin alloy contacts with tin plating and is designed for through-hole mounting on printed circuit boards. The housing is constructed from polyamide (PA46), providing an insulation height of 2.80 mm. This connector supports standard surface-mounting processes and offers reliable electrical interconnection for electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for direct PCB insertion
• Tin-plated copper-tin alloy contacts for corrosion resistance
• Polyamide PA46 insulation material for thermal stability

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Signal routing in consumer electronics assemblies
• Industrial control panel wiring interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material composition, as variations exist within the SL 11 series. Ensure the selected variant matches the required soldering process compatibility, such as reflow or wave soldering specifications defined in the official datasheet. Confirm that the 32-position count aligns precisely with the target PCB footprint design to avoid mechanical mismatch during assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 32 positions and 2.54 mm spacing is required. Consider the tin-plated contact finish for general environmental conditions rather than high-corrosion applications requiring gold plating. Verify that the through-hole mounting style fits the manufacturing capabilities of the production line. Evaluate the physical dimensions against available board space constraints before finalizing the part selection.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 series of PCB connectors. The series offers various position counts and row configurations for different interconnection needs. The SL 11 097 32 G specifically addresses requirements for moderate-density signal connections using standard through-hole technology. It is part of a broader catalog of headers designed for reliable performance in diverse electronic environments.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 32-position count, 2.54 mm pitch, and single-row male pin format. Verify that alternative manufacturers offer compatible through-hole mounting and similar insulation materials. Check if the replacement provides equivalent contact plating specifications to ensure comparable electrical performance and solderability characteristics.
