SL 11 097 32 Z

Headers, Male Pins Overview

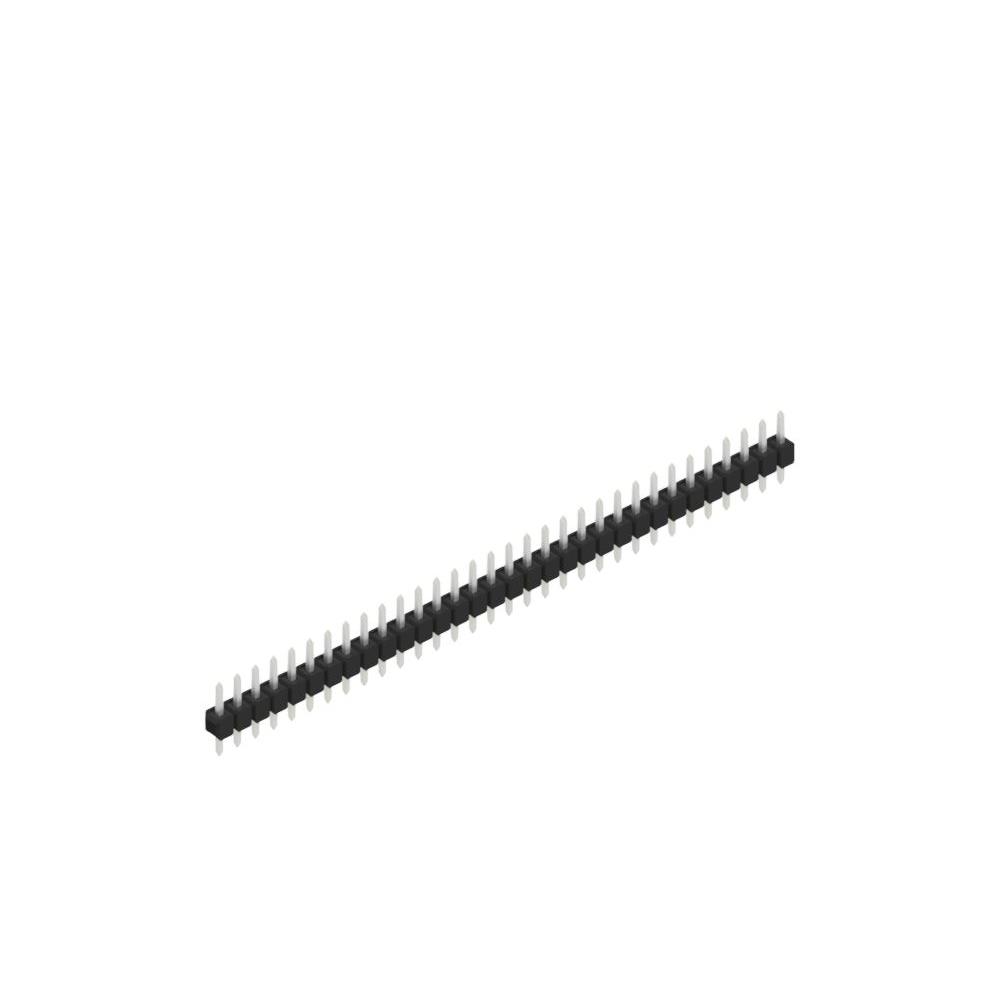

The SL 11 097 32 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 32-position configuration with a 0.100 inch (2.54 mm) pitch, designed for through-hole PCB mounting. The contacts are made of copper-tin alloy with a tin plating thickness of 157.5 µin (4.00 µm). The mating contact length is 0.319 inches (8.10 mm), while the post contact length measures 0.118 inches (3.00 mm). The total contact length is 0.547 inches (13.90 mm), and the insulation height is 0.110 inches (2.80 mm). The housing utilizes polyamide (PA46) material.

Headers, Male Pins Feature Summary

• Single-row male pin design for standard board-to-board or cable connections
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards
• Tin-plated copper-tin contacts provide reliable conductivity and corrosion resistance
• Polyamide insulation offers thermal stability and electrical isolation

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring signal interconnection
• Industrial control systems utilizing standard 2.54 mm spacing
• Consumer electronics manufacturing processes
• Prototyping and development boards

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 32-position count and single-row configuration before ordering. Confirm that the through-hole mounting style aligns with your PCB layout constraints. Ensure the operating temperature range specified in the official datasheet meets your application requirements. Check for RoHS compliance status if environmental regulations apply to your production environment.

Headers, Male Pins Selection Notes

Select this component when a 32-pin male header with 2.54 mm pitch is required for through-hole assembly. Consider the physical dimensions, particularly the 0.110 inch insulation height, to ensure adequate clearance within the enclosure. Evaluate the tin plating thickness for intended mating cycles and environmental exposure. Compare against alternative series if different contact materials or surface finishes are necessary for specific conductivity needs.

Headers, Male Pins Part Context

This connector belongs to the SL 11 series from Fischer Elektronik, which focuses on standard rectangular connectors. The series typically offers various position counts and row configurations to support diverse electronic integration needs. Components in this line are engineered for robust performance in industrial and commercial applications, providing consistent electrical connectivity across a wide range of equipment types.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik headers within the SL 11 family sharing identical 2.54 mm pitch and through-hole termination. Verify compatibility with existing mating sockets regarding contact geometry and insulation height. Cross-reference with generic industry-standard 32-pin male headers only if exact dimensional and material specifications are not critical to the system design.
