SL 11 097 33 G

Headers, Male Pins Overview

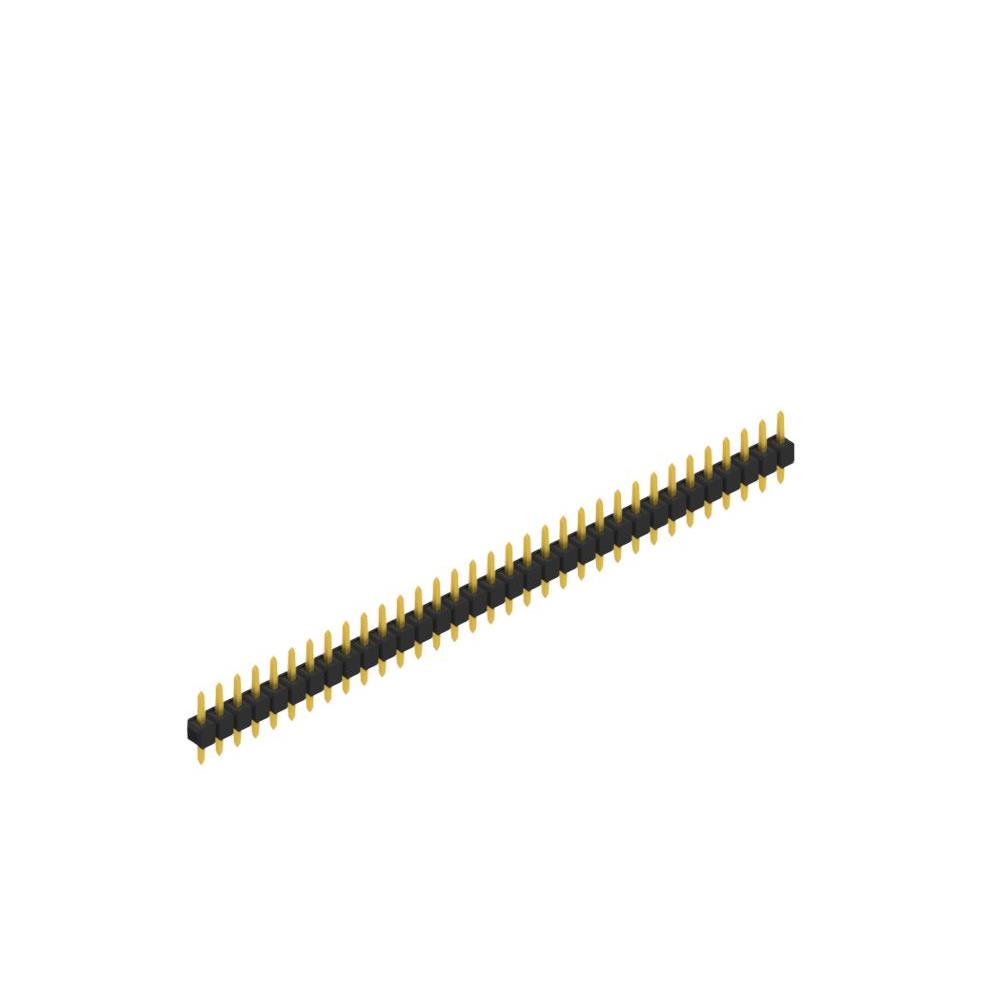

The SL 11 097 33 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 33 contacts designed for through-hole mounting on printed circuit boards. The connector utilizes square-shaped pins made from copper-tin alloy, with tin plating on both the mating and column sections to ensure reliable electrical connectivity. The housing is constructed from polyamide (PA46), providing structural integrity and thermal stability. This component is part of the SL 11 139 series, offering a standardized interface for board-to-board or wire-to-board applications requiring robust mechanical retention and consistent signal transmission.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single-row design with 33 positions for high-density connections
• Tin-plated copper-tin contacts for corrosion resistance
• Polyamide insulation material for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Wire-to-board connections for peripheral integration
• General-purpose PCB headers in industrial control systems
• Signal routing in consumer electronics hardware

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix 'G' corresponds to the required contact plating and material specifications as defined in the official Fischer Elektronik datasheet. Ensure compatibility with standard 2.54 mm pitch mating connectors. Confirm that the through-hole footprint matches the target PCB layout dimensions. Cross-reference the part number against the manufacturer's current product status to confirm availability and compliance with relevant environmental standards.

Headers, Male Pins Selection Notes

Select this component when a single-row, 33-position male header is required for through-hole assembly. The 2.54 mm pitch ensures compatibility with standard ribbon cables and mating sockets. Consider the polyamide housing and tin-plated contacts for general-purpose applications where moderate thermal resistance and corrosion protection are sufficient. Verify that the physical dimensions fit within the available space constraints of the electronic enclosure.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik, which are characterized by their precision engineering and compact form factors. The SL 11 097 variant specifically denotes a particular height and width profile within this family. These components are widely used in the electronics industry for creating reliable interconnects between circuit boards or connecting wires to PCBs, emphasizing mechanical stability and electrical performance.

Headers, Male Pins Replacement Considerations

SL 11 097 33 Z

Headers, Male Pins FAQ

What is the contact material for the SL 11 097 33 G?

The contacts are made from copper-tin alloy.

Is this connector suitable for surface mount applications?

No, it is designed for through-hole mounting.
