SL 11 097 33 S

Headers, Male Pins Overview

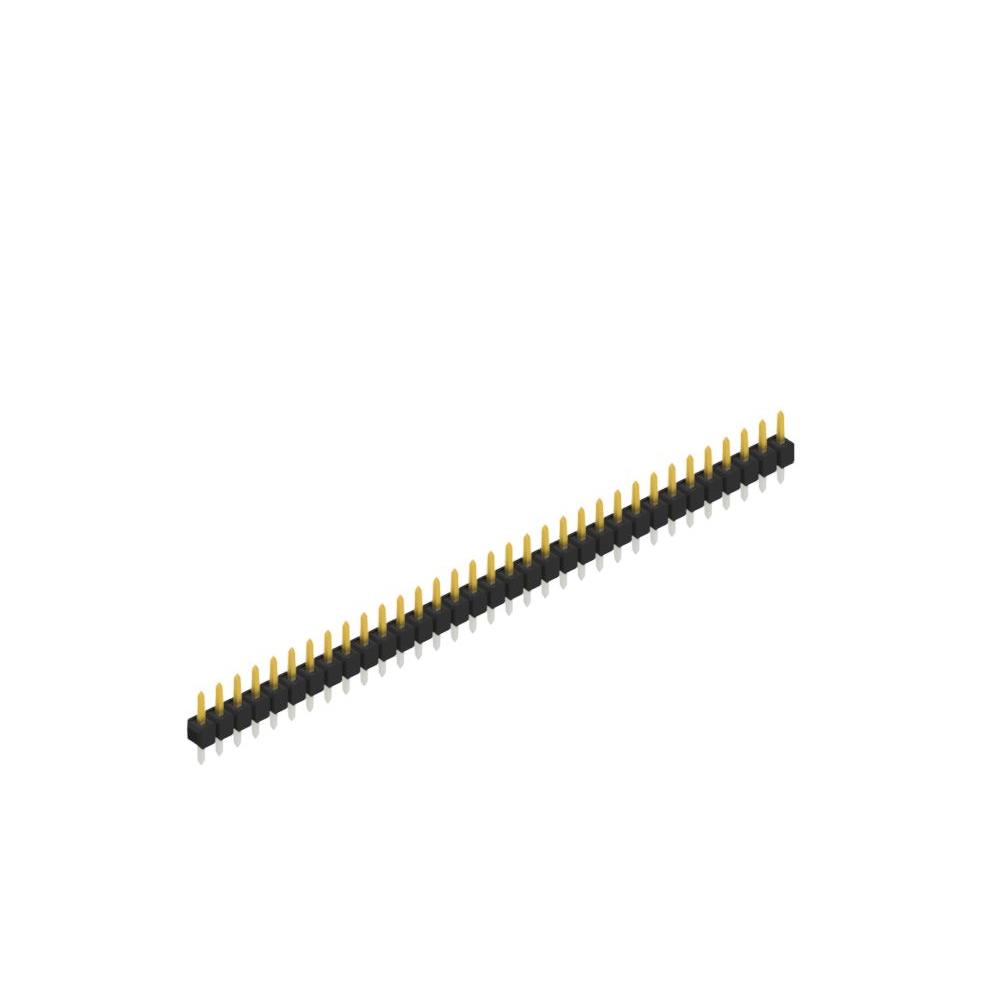

The SL 11 097 33 S is a male PCB connector from the Fischer Elektronik SL 11 series. It features a single row with 33 positions and a 2.54 mm pitch. The component utilizes tin-plated contacts made of copper-tin alloy, with a plating thickness of 157.5 µin (4.00 µm). Physical dimensions include a length of 9.7 mm, width of 3 mm, and height of 3.9 mm. The insulating material is polyamide (PA46), and the connector is supplied in bulk packaging.

Headers, Male Pins Feature Summary

• Precision-engineered compact design suitable for space-constrained applications
• Single-row male pin header configuration for reliable signal transmission
• Tin-plated copper-tin contacts ensuring corrosion resistance

Headers, Male Pins Applications

• General electronic circuit interconnections
• Signal processing modules
• Industrial control equipment

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's official datasheet to confirm surface finish and contact plating specifications. Ensure compatibility with mating connectors regarding pitch and row count. Confirm that the bulk packaging format aligns with assembly requirements. Cross-reference the part number with the latest Fischer Elektronik documentation to validate current production status and any potential revisions.

Headers, Male Pins Selection Notes

Select this component when a 33-position, single-row male header is required. The 2.54 mm pitch is standard for many through-hole applications. Consider the physical footprint of 9.7 x 3 x 3.9 mm for board layout constraints. Verify thermal and electrical ratings against application needs. Ensure the tin plating meets environmental or conductivity requirements for the specific interface.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male PCB connectors manufactured by Fischer Elektronik GmbH & Co. KG, a German company established in 1969. The series includes various configurations with different pin counts and pitches. Fischer Elektronik specializes in connectors, heat sinks, and electronic components for industrial and consumer electronics.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult Fischer Elektronik technical support for direct equivalents or cross-references.
