SL 11 097 33 Z

Headers, Male Pins Overview

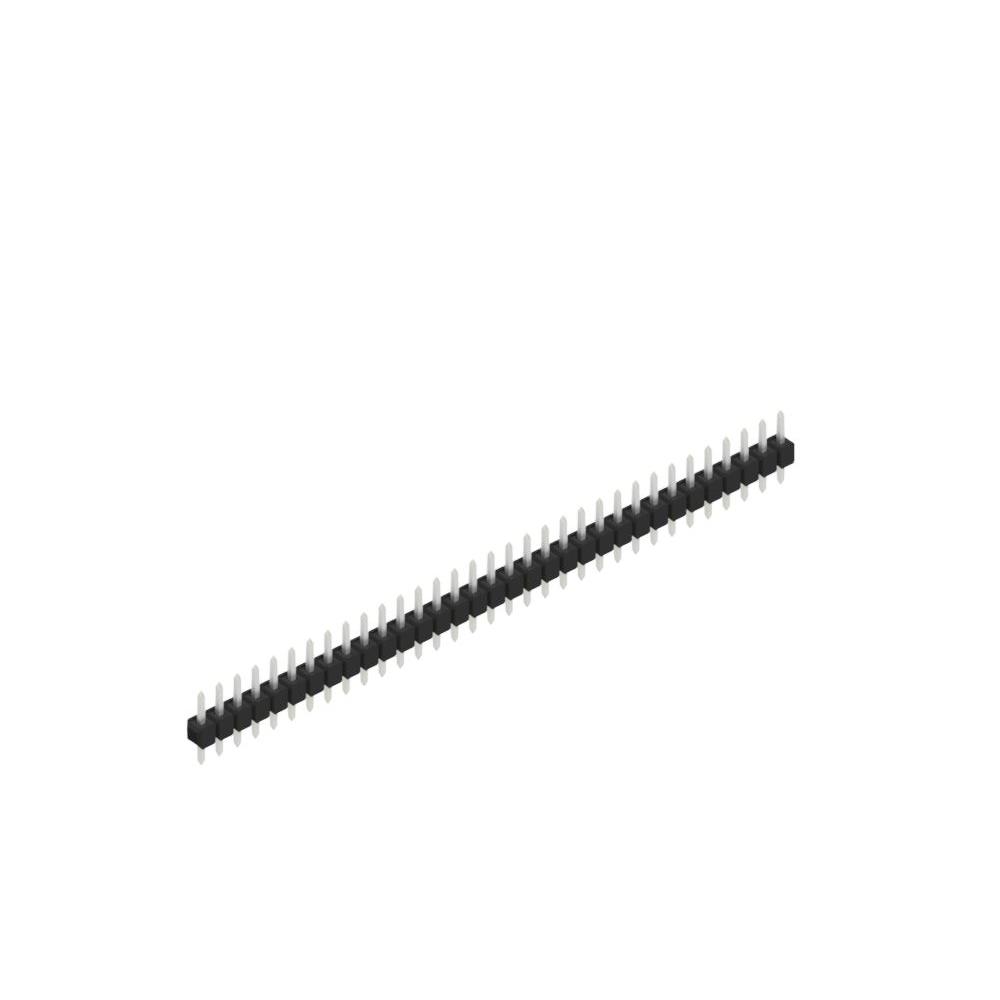

The SL 11 097 33 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 33 contacts designed for through-hole mounting. The connector utilizes square pins with a tin-plated copper alloy contact material, offering a mating contact length of 8.10 mm and a column length of 3.00 mm. The insulating body is constructed from polyamide (PA46), providing an insulation height of 2.80 mm and a total contact length of 13.90 mm. This component is currently active in production.

Headers, Male Pins Feature Summary

• Single-row configuration with 33 positions for reliable board-to-board or wire-to-board interconnection
• Through-hole straight mounting style utilizing square-shaped male pins
• Tin-plated copper alloy contacts ensure corrosion resistance and stable electrical performance
• Polyamide (PA46) insulating body provides structural integrity and thermal stability

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring robust interconnects
• Industrial control systems and instrumentation panels
• Consumer electronics manufacturing and prototyping
• Automotive electronic subsystems and sensor interfaces

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 097 33 Z against official Fischer Elektronik documentation to confirm current availability and technical specifications. Ensure that the required contact count, pitch, and mounting style align with the design requirements. Cross-reference datasheets for environmental ratings and material composition to guarantee compliance with project standards before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a single-row, 33-position male header with a 2.54 mm pitch is required for through-hole applications. Consider the PA46 insulation material and tin-plated contacts for general environmental resilience. Evaluate the physical dimensions, including the 2.80 mm insulation height, to ensure compatibility with the target PCB layout and enclosure constraints compared to alternative series options.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of rectangular connectors from Fischer Elektronik. The series offers various configurations in terms of row count, position numbers, and contact materials. The SL 11 097 33 Z specifically represents a high-density option within the single-row category, designed for applications needing multiple connections in a compact footprint while maintaining standard spacing dimensions.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik catalogs for direct substitutes with identical mechanical and electrical properties. Verify that any alternative maintains the 2.54 mm pitch, 33-position count, and through-hole mounting style. Ensure material compatibility and temperature ratings match the original specifications to prevent assembly issues.
