SL 11 097 34 G

Headers, Male Pins Overview

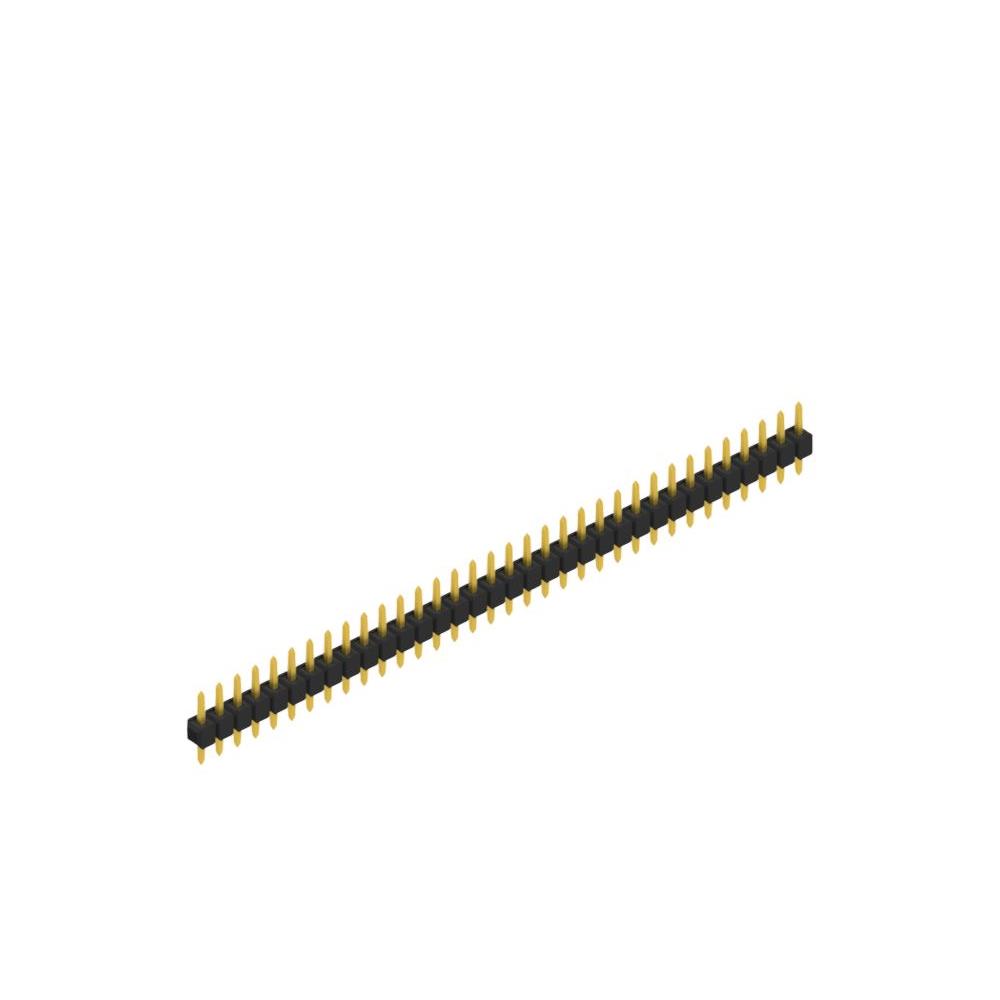

The SL 11 097 34 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 34 positions and a 2.54 mm (0.100 inch) pitch. The component utilizes tin-plated copper contacts and a polyamide (PA46) insulator. Key dimensions include a contact length of 8.10 mm for mating, a column length of 3.00 mm, and an insulation height of 2.80 mm. The total contact length measures 13.90 mm. The part is designed for through-hole mounting on PCBs.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for reliable circuit interconnection
• Tin-plated copper contacts ensure stable electrical conductivity
• Polyamide (PA46) insulation provides thermal stability up to 163°C

Headers, Male Pins Applications

• Through-hole PCB assembly
• General electronic equipment interconnects
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm plating specifications and material composition. Ensure the selected variant matches the required contact count and pitch for your design. Cross-reference the part number with authorized distributors to confirm current availability and authenticity before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 34-position single-row header with 2.54 mm spacing is required. Verify that the through-hole footprint aligns with your PCB layout constraints. Consider the operating temperature range and insulation material properties if the application involves high thermal stress or specific chemical environments.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL 11 series, which offers various pin counts and configurations. The SL 11 097 34 G specifically addresses applications requiring a higher density connection in a single row format. It complements other variants in the series that offer different position counts while maintaining consistent mechanical and electrical standards.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitutes within the SL 11 series with differing pin counts. Verify compatibility with mating connectors regarding pitch and contact geometry before considering alternative manufacturers.

Headers, Male Pins FAQ

What is the maximum operating temperature for the SL 11 097 34 G?

The component supports an operating temperature range from -40°C to +163°C.

What material is used for the insulation housing?

The insulation housing is made of polyamide (PA46).
