SL 11 097 34 S

Headers, Male Pins Overview

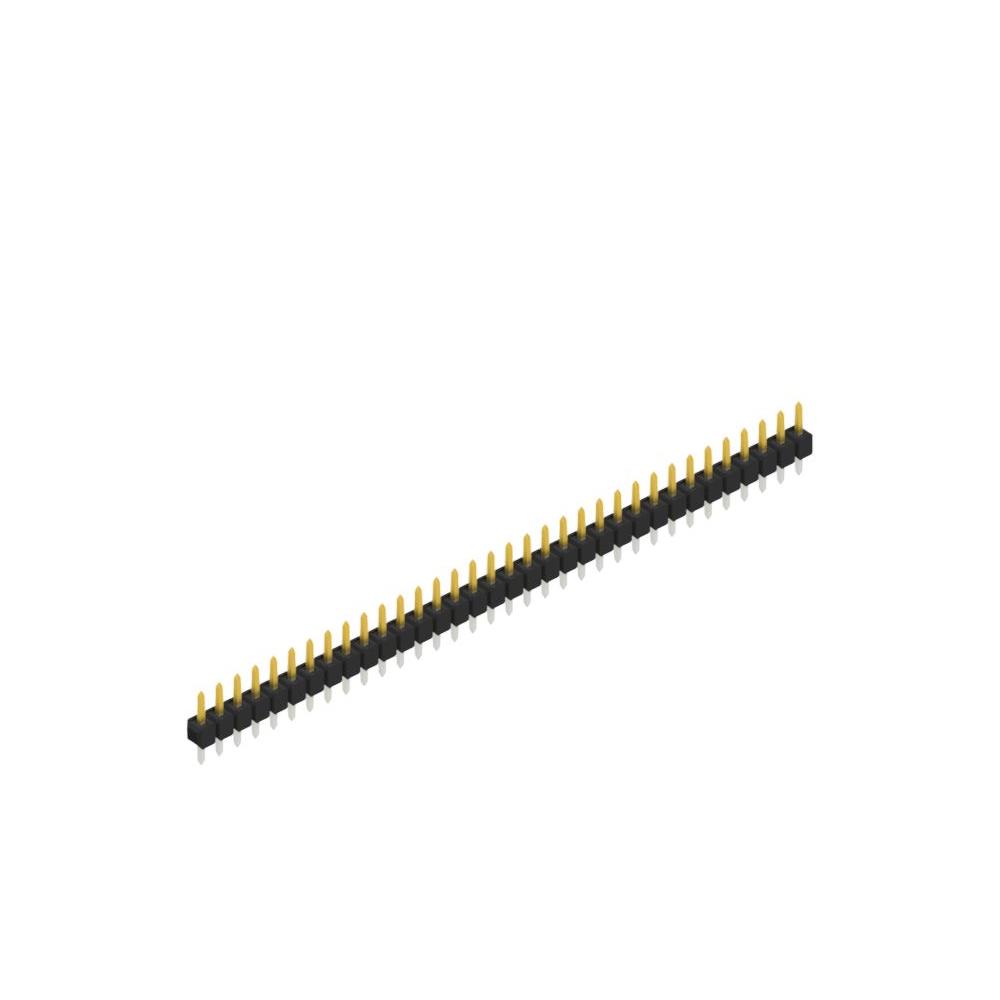

The SL 11 097 34 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features 34 positions with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The contacts are constructed from copper-tin alloy and feature a tin plating finish. The component utilizes a polyamide (PA46) insulator rated UL 94 V-0. Technical specifications indicate a contact length of 8.10 mm for mating and 3.00 mm for the post section, with an overall contact length of 13.90 mm. The operating temperature range extends from -40°C to +163°C, and it supports reflow soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Precision-engineered straight male pin header design for reliable board-to-board or wire-to-board connections.
• Utilizes high-temperature resistant polyamide (PA46) insulation material ensuring stability under thermal stress.
• Tin-plated copper-tin contacts provide corrosion resistance and secure electrical conductivity.
• Compatible with standard through-hole PCB assembly processes including reflow soldering.

Headers, Male Pins Applications

• General electronic equipment interconnection
• Industrial control system circuit boards
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's current datasheet to confirm exact plating thickness and material composition, as variations may exist between production batches. Ensure compatibility with mating socket dimensions before procurement. Confirm RoHS compliance status if required for your specific regulatory environment. Cross-reference the 34-position count with your PCB footprint requirements to avoid assembly errors.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. The 34-position configuration suits interfaces needing moderate channel density. Consider the PA46 insulation for environments requiring higher thermal stability compared to standard nylon materials. Ensure the mating connector matches the square contact shape and 0.319 inch mating length specifications.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of precision headers. The series offers various position counts and contact configurations. The SL 11 097 34 S specifically addresses needs for 34-channel connectivity in a compact form factor. Fischer Elektronik specializes in connectors and cooling solutions for electronic systems, emphasizing reliability and precision engineering in their product lines.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include SL 11 097 32 S and SL 11 097 36 S for different position counts. For generic replacements, ensure the alternative maintains the 2.54 mm pitch, through-hole termination, and similar insulation material properties. Verify that any substitute meets the same UL 94 V-0 rating and temperature specifications.

Headers, Male Pins FAQ

What is the maximum reflow soldering temperature for this component?

The component supports reflow soldering at 260°C for a duration of 10 seconds.

What is the operating temperature range?

The specified operating temperature range is from -40°C to +163°C.
