SL 11 097 34 Z

Headers, Male Pins Overview

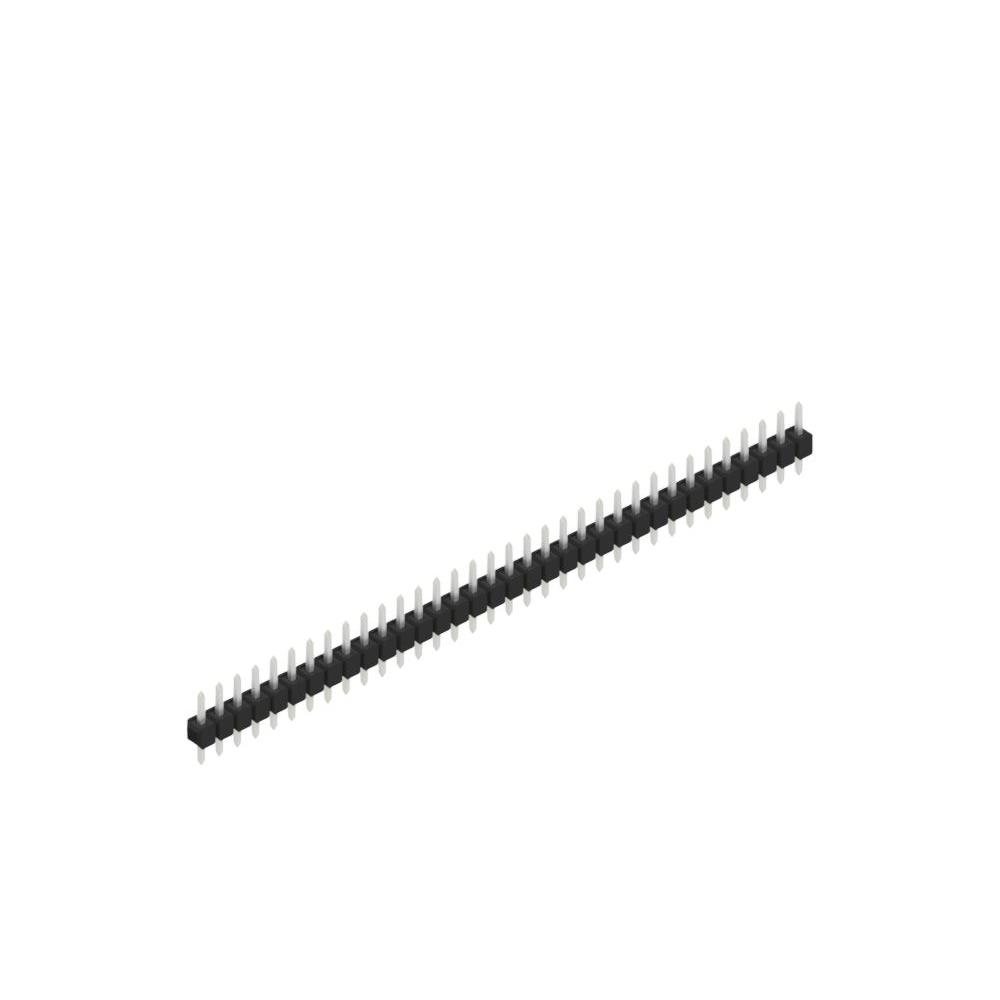

The SL 11 097 34 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 34 positions. The connector utilizes copper-tin contact material with a tin-plated finish on both the post and mating surfaces. Insulation is provided by glass-filled polyamide (PA46/nylon). Key dimensions include an insertion depth of 3.00 mm, an insulation height of approximately 2.80 mm, and a total contact length of 13.90 mm. The component operates within a temperature range of -40°C to +163°C and supports soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row straight male pin configuration for through-hole PCB mounting
• Glass-filled polyamide insulation ensuring thermal stability up to 163°C
• Tin-plated copper-tin contacts providing reliable electrical connectivity
• Precision 2.54 mm pitch designed for compact electronic assemblies

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Industrial control system signal routing
• Consumer electronics internal wiring harnesses
• Test and measurement equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm plating specifications and availability status. Ensure the required insertion depth of 3.00 mm aligns with the target PCB thickness. Confirm that the operating temperature range of -40°C to +163°C meets the environmental requirements of the final assembly application before ordering.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a standard 2.54 mm pitch is required for high-density applications. The 34-position count suits moderate-width boards. Consider the glass-filled PA46 insulation if higher thermal resistance is needed compared to standard nylon. Verify that the 3.00 mm insertion depth accommodates the board stack-up without excessive protrusion or insufficient engagement.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series is characterized by its compact design and precision engineering for modern electronic assemblies. Similar parts in the series vary primarily by the number of poles and specific insulation or plating options, maintaining the consistent 2.54 mm pitch and single-row format across the lineup.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 34 positions, single-row male configuration, and similar insulation material properties. Verify that any alternative component supports the same -40°C to +163°C operating temperature range and compatible soldering profiles. Cross-reference mechanical dimensions to ensure PCB footprint compatibility.
