SL 11 097 35 G

Headers, Male Pins Overview

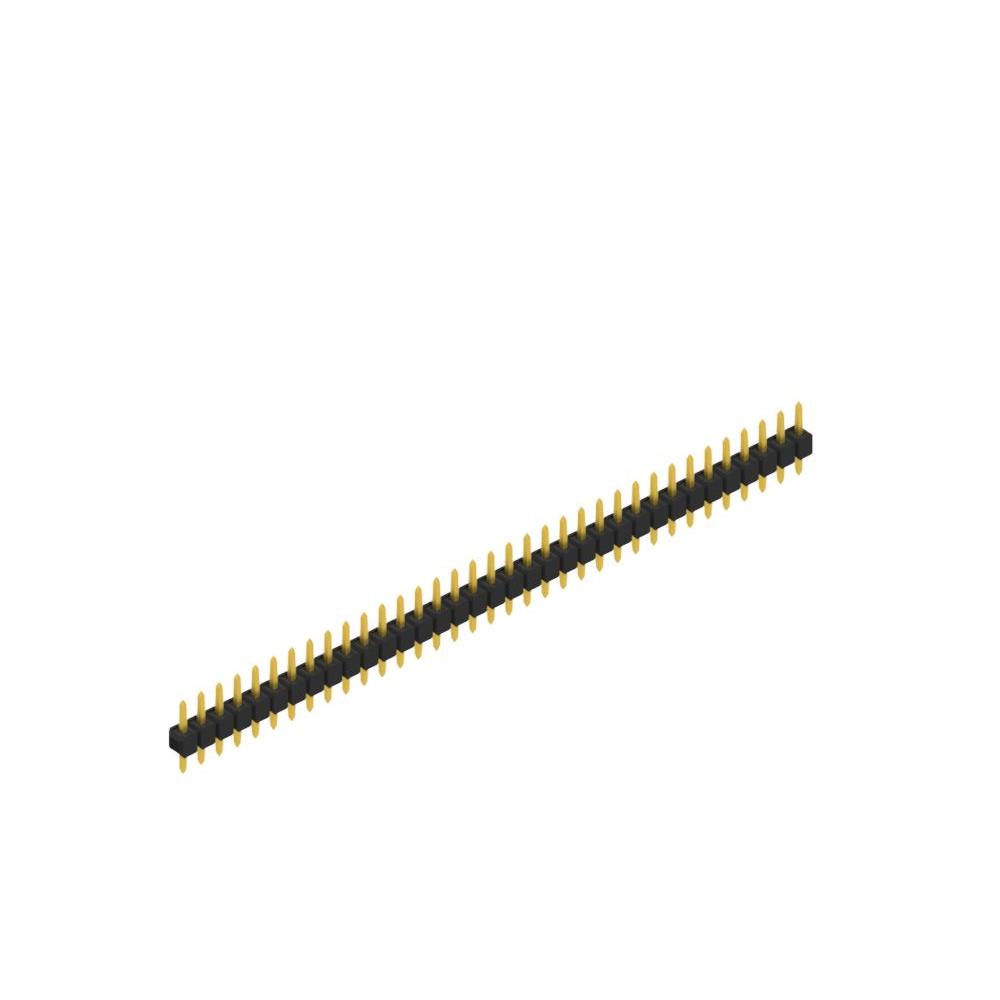

The SL 11 097 35 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 35 contacts and a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, the connector utilizes tin-plated copper alloy pins housed in a polyamide (PA46) insulator. The assembly supports standard surface mount reflow processes and provides reliable electrical interconnection for PCB applications.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Through-hole termination method ensuring secure mechanical attachment to printed circuit boards
• Tin-plated contact surfaces providing corrosion resistance and solderability

Headers, Male Pins Applications

• General-purpose electronic equipment interconnections
• Industrial control system signal routing
• Consumer electronics module assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with intended mating connectors and PCB hole dimensions. Check for RoHS compliance status if required by project regulations. Confirm package type matches assembly requirements.

Headers, Male Pins Selection Notes

Select this component when a 35-position single-row header is required for through-hole PCB integration. Consider the 2.54 mm pitch for standard spacing needs. Evaluate thermal resistance during reflow soldering if high-temperature profiles are used. Compare housing material properties against environmental exposure conditions.

Headers, Male Pins Part Context

This connector belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts and configurations for diverse electronic assembly needs. Fischer Elektronik specializes in precision connectors and cooling solutions, providing standardized components for global manufacturing sectors.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with identical 35-contact counts and 2.54 mm pitch. Verify that alternative parts maintain the same through-hole termination style and tin plating specifications to ensure interchangeability without design modification.
