SL 11 097 35 S

Headers, Male Pins Overview

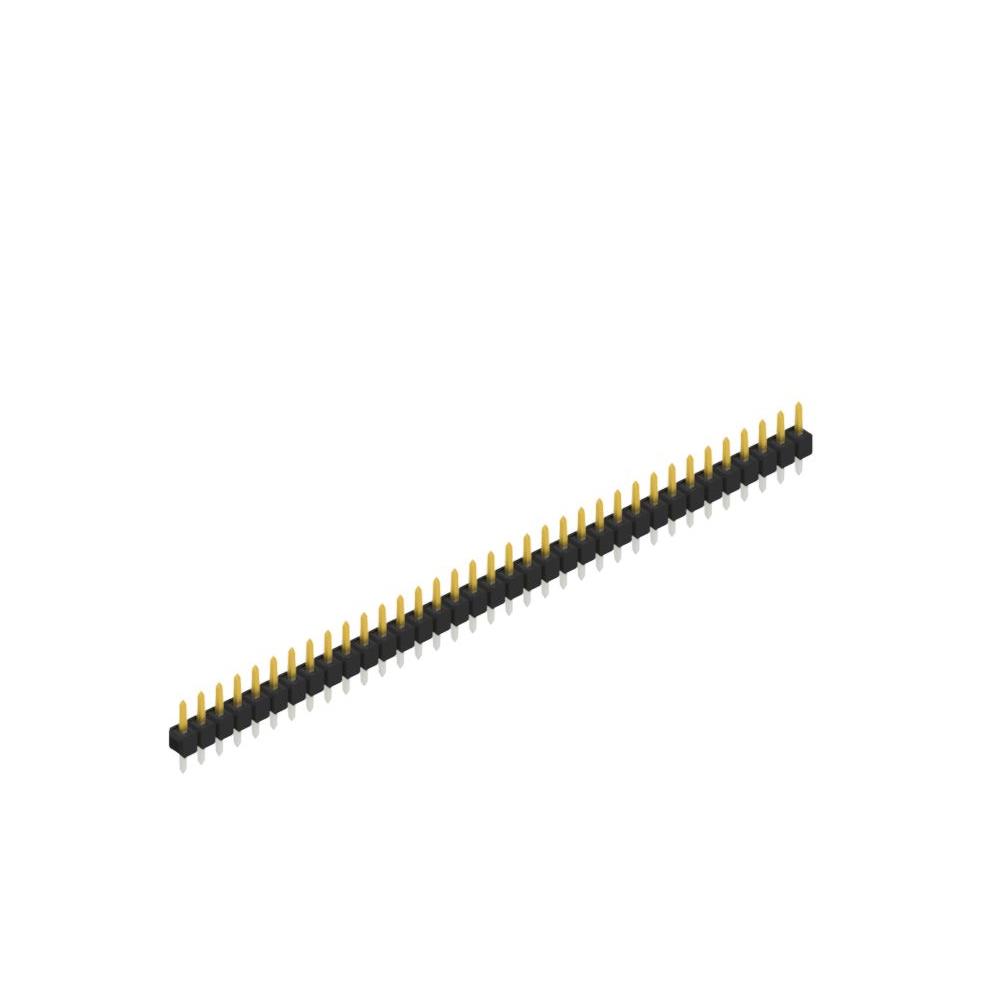

The SL 11 097 35 S is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 35 positions and a 2.54 mm (0.100 inch) pitch. The contacts are gold-plated over nickel, providing reliable electrical connections. The component is designed for through-hole mounting on PCBs. Key dimensions include a length of 9.7 mm, width of 3 mm, and height of 3.9 mm. It supports soldering temperatures up to 260°C for 10 seconds and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row male header configuration for standard PCB interconnection
• Gold-plated contact surfaces ensuring corrosion resistance and conductivity
• Through-hole mounting design compatible with standard assembly processes

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Prototype development and testing setups
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's current datasheet to confirm plating thickness and material specifications. Ensure compatibility with mating female connectors regarding pitch and contact geometry. Check for RoHS compliance status if required by project regulations. Confirm availability of bulk quantities if production scaling is anticipated.

Headers, Male Pins Selection Notes

Select this component when a 35-position single-row male header is required. The 2.54 mm pitch is standard for many legacy and general-purpose designs. Gold plating is suitable for environments requiring high reliability and low contact resistance. Consider mechanical stability and PCB space constraints given the 9.7 mm length.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik pin headers. The series offers various configurations in terms of position count and row arrangement. The SL 11 097 specifically denotes a 35-position variant. Fischer Elektronik specializes in precision connectors for diverse industrial applications.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 35-position count, 2.54 mm pitch, and single-row male header type. Verify that alternative components offer similar gold plating specifications and thermal endurance ratings. Mechanical footprint compatibility is critical for direct replacement without PCB redesign.
