SL 11 097 35 Z

Headers, Male Pins Overview

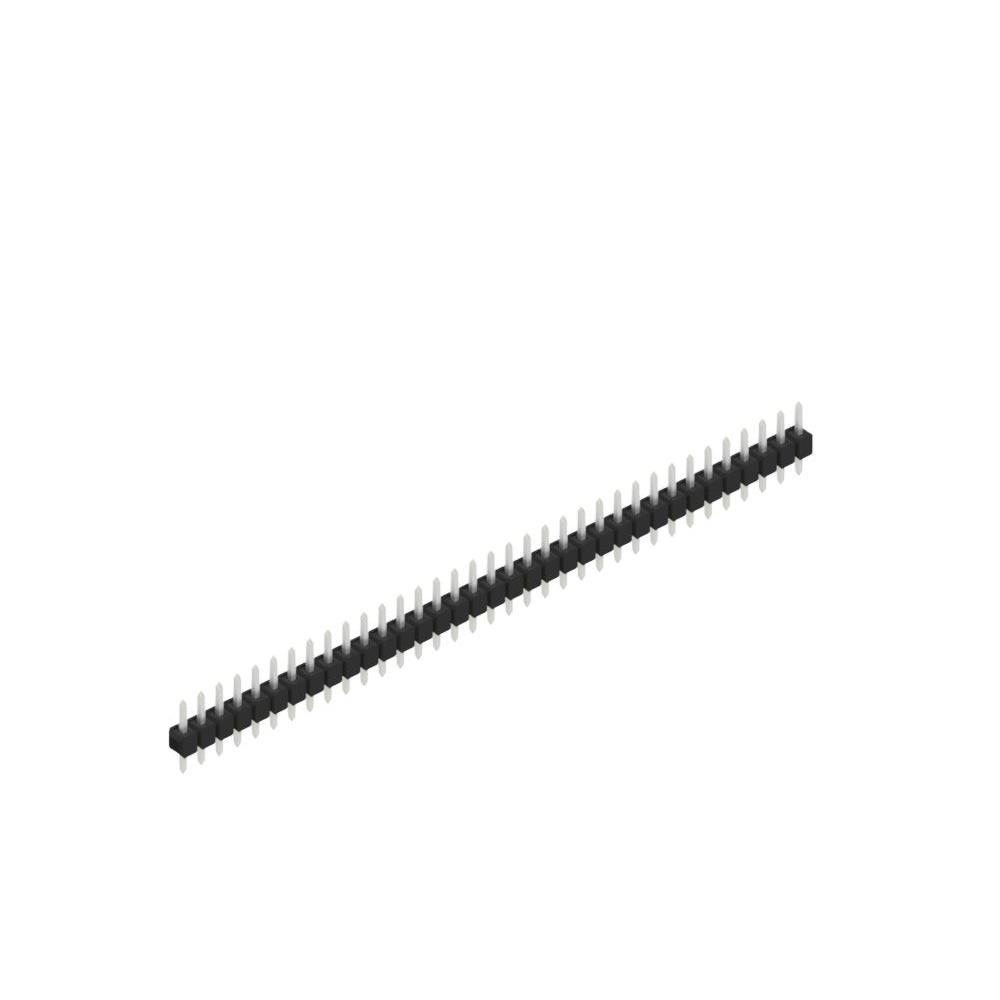

The Fischer Elektronik SL 11 097 35 Z is a single-row pin header connector designed for through-hole mounting. It features 36 positions with a 2.54 mm (0.100 inch) mating pitch. The contacts are male pins with a square shape, constructed from copper-tin and finished with tin plating. The assembly utilizes polyamide (PA46) insulation, providing an insulation height of 2.80 mm. The overall contact length measures 13.90 mm, with a mating contact length of 8.10 mm and a post contact length of 3.00 mm. The tin plating thickness is specified at 4.00 µm.

Headers, Male Pins Feature Summary

• Single-row configuration with 36 positions for standardized circuit board interconnection
• Through-hole termination method ensuring secure mechanical attachment to printed circuit boards
• Tin-plated male pin contacts fabricated from copper-tin alloy for reliable conductivity
• Polyamide (PA46) insulating housing providing structural stability and thermal resistance

Headers, Male Pins Applications

• General-purpose electronic equipment signal routing
• Industrial control system interface connections
• Consumer electronics internal component linking

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm current production status and exact dimensional tolerances. Ensure that the required tin plating thickness and material composition align with project specifications. Cross-reference the pin count and pitch requirements with the target application design to prevent compatibility issues during procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-position through-hole header is required for PCB assembly. The 2.54 mm pitch matches standard breadboard and prototyping spacing. Consider the PA46 insulation material for applications requiring moderate thermal stability. Verify that the square pin shape and tin finish meet the mating connector requirements for the intended electrical interface.

Headers, Male Pins Part Context

This connector belongs to the SL 11 series by Fischer Elektronik, which specializes in rectangular connectors and pin headers. The series offers various position counts and configurations for diverse electronic interconnection needs. The SL 11 series is characterized by its robust construction and standardized dimensions, facilitating easy integration into various electronic assemblies and systems.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik catalogs for direct replacements within the SL 11 series. Verify compatibility with existing mating connectors before substituting. Generic equivalents may differ in insulation material or contact plating quality.
