SL 11 097 36 S

Headers, Male Pins Overview

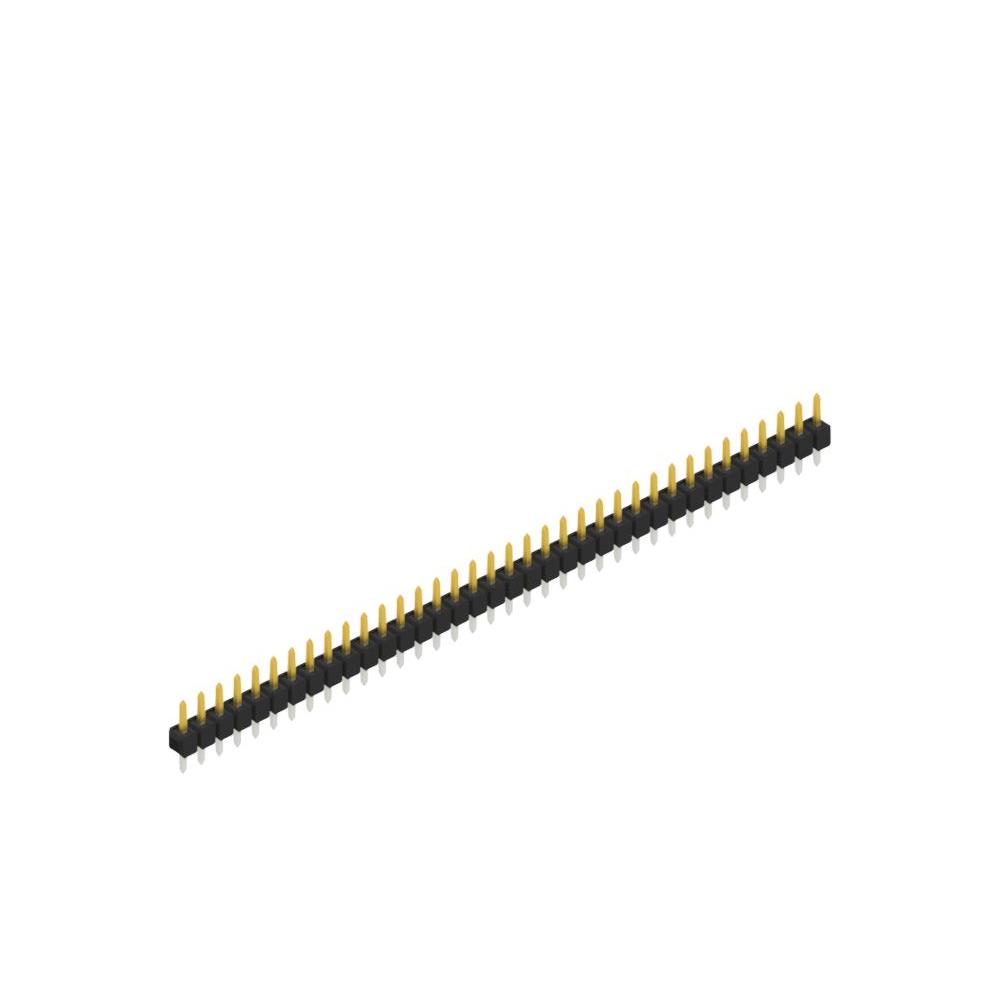

The SL 11 097 36 S is a single-row male pin header manufactured by Fischer Elektronik. It features 36 positions with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes tin-plated contacts made from copper-tin alloy, offering a contact plating thickness of 157.5 µin (4.00 µm). The assembly incorporates polyamide (PA46) insulation, providing an insulation height of 0.110 inches (2.80 mm). Total contact length measures 0.547 inches (13.90 mm), with a mating contact length of 0.319 inches (8.10 mm). The component operates within a temperature range of -40°C to +163°C and supports soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Precision-engineered straight male pin header designed for reliable board-to-board or wire-to-board interconnections.
• Utilizes square-shaped tin-plated contacts fabricated from copper-tin alloy for consistent electrical performance.
• Constructed with glass-filled polyamide (PA46) insulation material ensuring structural stability and thermal resistance.

Headers, Male Pins Applications

• Through-hole mounting on printed circuit boards requiring high-density signal routing
• Board-to-board interconnection systems in industrial electronic assemblies
• Wire-to-board connections in control panels and instrumentation equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm tin plating specifications. Ensure compatibility with standard 2.54 mm pitch mating connectors. Confirm that the operating temperature range of -40°C to +163°C meets application requirements. Check for RoHS compliance status if required by project regulations. Validate physical dimensions against PCB footprint guidelines before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-position male header is required for through-hole applications. The 2.54 mm pitch ensures compatibility with standard ribbon cables and mating sockets. Consider the PA46 insulation material for environments requiring higher thermal stability compared to standard nylon. Verify that the straight orientation fits the mechanical constraints of the enclosure design.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik headers, which are characterized by their precision engineering and robust construction. The series offers various position counts and plating options to suit different electronic interconnection needs. The SL 11 097 variant specifically denotes a compact form factor suitable for space-constrained designs while maintaining reliable electrical connectivity.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 36-position count, 2.54 mm pitch, and through-hole mounting style. Verify that alternative components offer compatible tin plating and PA46 insulation. Ensure the replacement part supports the same operating temperature range and soldering profile. Cross-reference mechanical dimensions to guarantee fit within existing PCB footprints.

Headers, Male Pins FAQ

What is the maximum operating temperature for the SL 11 097 36 S?

The component is rated for an operating temperature range of -40°C to +163°C.

What material is used for the insulation in this connector?

The insulation is made from glass-filled polyamide (PA46), also referred to as Nylon 4/6.

Does this connector support reflow soldering at 260°C?

Yes, the datasheet indicates the component can withstand soldering conditions of 260°C for 10 seconds.
