SL 11 097 36 Z

Headers, Male Pins Overview

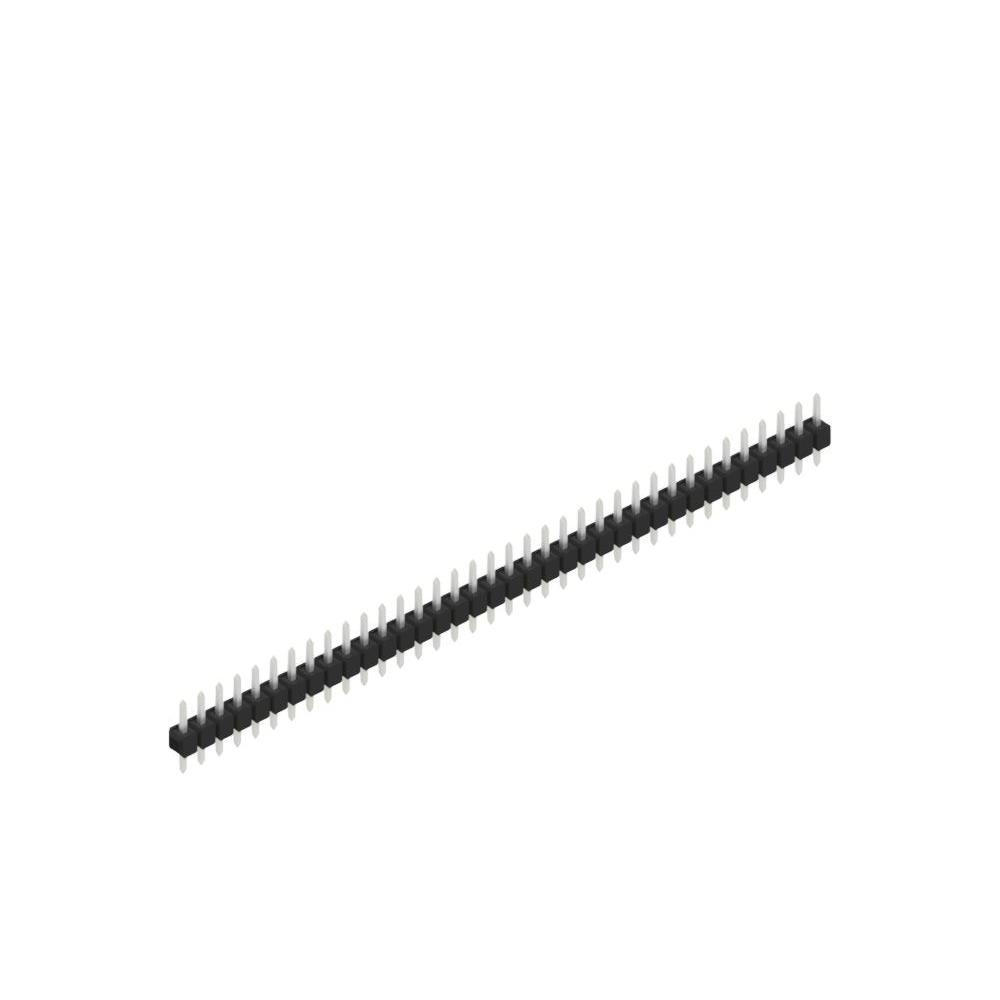

The SL 11 097 36 Z is a male pin header manufactured by Fischer Elektronik. It features a single row with 36 contacts and a 2.54 mm pitch. The connector utilizes through-hole mounting for secure PCB attachment. Contact materials are copper-tin, with tin plating on both mating and post surfaces. The insulating housing is made of PA 4.6 (nylon) meeting UL 94 V-0 flammability standards. Total contact length is 13.90 mm, with an insulation height of 2.80 mm.

Headers, Male Pins Feature Summary

• Single-row male header configuration designed for board-to-board or wire-to-board connections
• Through-hole termination method ensures robust mechanical stability on printed circuit boards
• Tin-plated copper-tin contacts provide reliable electrical conductivity and corrosion resistance
• PA 4.6 insulating material offers high thermal stability and UL 94 V-0 flame retardancy

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics assembly
• Telecommunications equipment signal routing
• Automotive electronic module connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' corresponds to the required tin plating thickness and contact geometry as defined in the official Fischer Elektronik datasheet. Confirm that the 36-position count matches the design requirement. Ensure the through-hole footprint aligns with the manufacturer's recommended land pattern. Check for any RoHS compliance declarations if environmental regulations apply to the final product assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-pin male header is required for through-hole applications. The 2.54 mm pitch is standard for general-purpose electronics. Consider the PA 4.6 material properties for thermal management needs. Verify that the straight pin orientation fits within the available vertical clearance of the enclosure. Compare against alternative series if different contact lengths or plating options are necessary.

Headers, Male Pins Part Context

This part belongs to the SL 11 series from Fischer Elektronik, which specializes in precision connectors. The series typically includes various pin counts and configurations. Fischer Elektronik is a German manufacturer established in 1969, known for producing cooling solutions and electronic components. The SL 11 series focuses on reliable interconnection solutions for diverse industrial and commercial applications.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik headers within the SL 11 family with identical pitch and pin count. Cross-manufacturer replacements must match the 2.54 mm pitch, 36 positions, and through-hole mounting style. Verify that alternative suppliers offer compatible contact materials and insulation ratings. Ensure physical dimensions, including total height and width, fit the existing PCB layout without modification.
