SL 11 097 4 Z

Headers, Male Pins Overview

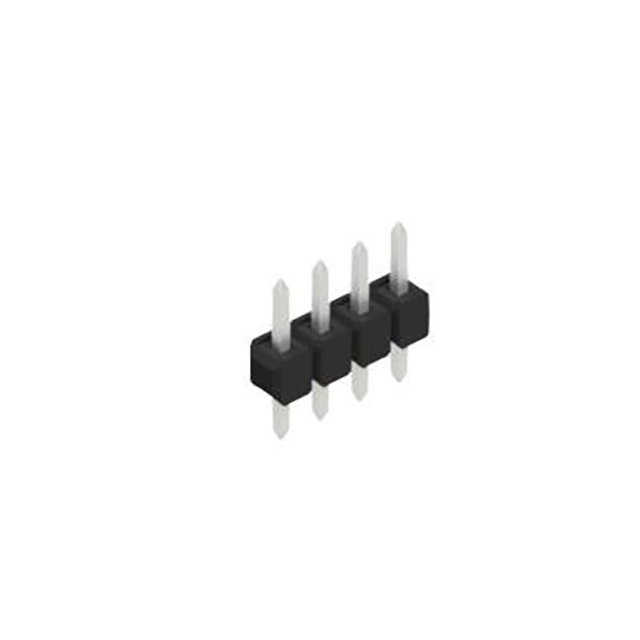

The SL 11 097 4 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features four contacts with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes gold-plated pins to ensure reliable electrical performance and corrosion resistance. It operates within a temperature range of -40°C to +163°C and supports an AC voltage rating of 250 V. The unit is constructed from PA 4.6 polyamide insulation material.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Gold-plated contact surfaces for enhanced conductivity
• Single-row layout with four positions

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly requiring low-profile headers

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' corresponds to the required gold plating finish as indicated in official documentation. Confirm that the physical dimensions match the design constraints of the target PCB footprint. Ensure compatibility with mating connectors regarding pin spacing and row alignment before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a compact, four-position male header is required for through-hole applications. The gold plating offers superior durability compared to standard tin finishes. Consider the operating temperature limits and voltage ratings to ensure suitability for the intended electronic environment and safety standards.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic components from Fischer Elektronik. The series is characterized by compact designs suitable for space-constrained applications. The SL 11 097 variant specifically denotes a four-contact configuration within this product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch and four positions, such as the SL 11 097 4 G, provided the tin plating variant meets the application requirements. Verify dimensional compatibility and plating specifications when sourcing alternatives.
