SL 11 097 6 G

Headers, Male Pins Overview

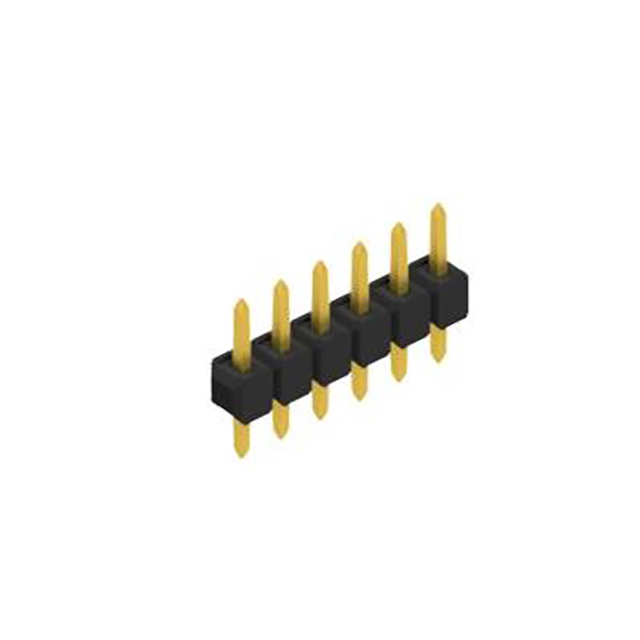

The SL 11 097 6 G is a male header connector manufactured by Fischer Elektronik. It features a single row of six contacts with a 2.54 mm pitch. The connector utilizes through-hole mounting for secure PCB attachment. Contact materials consist of copper tin, finished with gold plating on both mating and post surfaces to ensure reliable electrical performance.

Headers, Male Pins Feature Summary

• Single row male pin header configuration
• Gold-plated contact surfaces for corrosion resistance
• Through-hole mounting style for board integration

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Prototype development and testing setups
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with mating connectors regarding pitch and row configuration. Check for RoHS compliance status if required by project regulations. Confirm availability through authorized distributors.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for direct PCB insertion. The 2.54 mm pitch ensures compatibility with standard breadboard and ribbon cable systems. Gold plating offers superior conductivity compared to tin-only finishes in corrosive environments. Consider mechanical stability requirements for through-hole applications.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various contact counts ranging from small configurations to higher density options. All units share consistent dimensional profiles and mounting characteristics within the family, facilitating standardized design practices across different product lines.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with matching 2.54 mm pitch and single-row layout. Verify that alternative parts maintain identical gold plating thickness and copper tin contact material properties. Ensure physical dimensions match existing PCB footprints to avoid rework.
