SL 11 097 6 S

Headers, Male Pins Overview

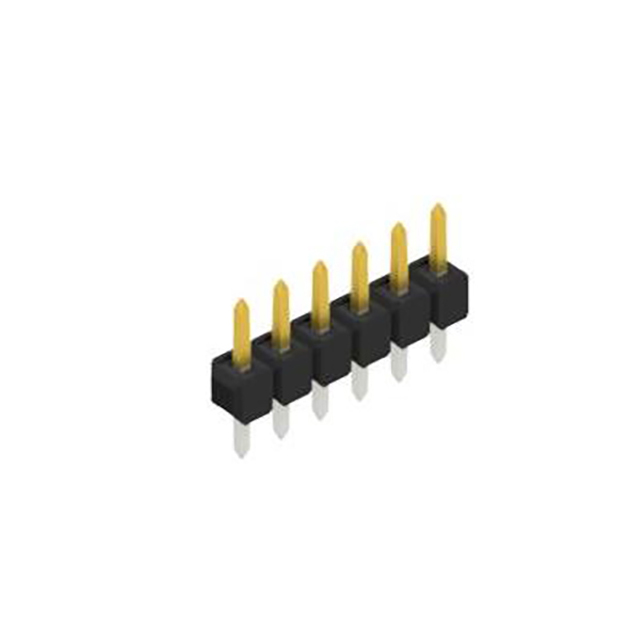

The SL 11 097 6 S is a male pin header connector manufactured by Fischer Elektronik. It features a single row with six contacts and a pitch of 2.54 mm (0.100 inches). The component utilizes through-hole mounting for secure PCB attachment. Contact materials are copper alloy, plated with tin to ensure reliable electrical connections and corrosion resistance. The housing is constructed from polyamide (PA46), providing mechanical stability and thermal endurance suitable for standard surface mount processes.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration
• Through-hole mounting for PCB integration
• Tin-plated copper alloy contacts
• Polyamide insulation housing

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Board-to-board signal transmission
• Wire-to-board connection points
• Prototyping and development boards

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's official datasheet to confirm exact contact plating thickness and material specifications. Ensure compatibility with standard 2.54 mm grid layouts. Cross-reference the part number with Fischer Elektronik's current product catalog to confirm availability and any recent design updates or revisions that may affect physical dimensions or performance characteristics.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for through-hole assembly. The 2.54 mm pitch ensures compatibility with standard ribbon cables and mating female connectors. Consider the thermal rating of the polyamide housing if high-temperature soldering processes are employed. Verify that the contact count matches the circuit requirements to minimize unused pins and board space consumption.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series offers various contact counts and configurations designed for reliable PCB interconnects. Components in this family typically share similar dimensional profiles and mounting styles, differing primarily in the number of positions and specific housing variations to suit different density requirements.
