SL 11 097 6 Z

Headers, Male Pins Overview

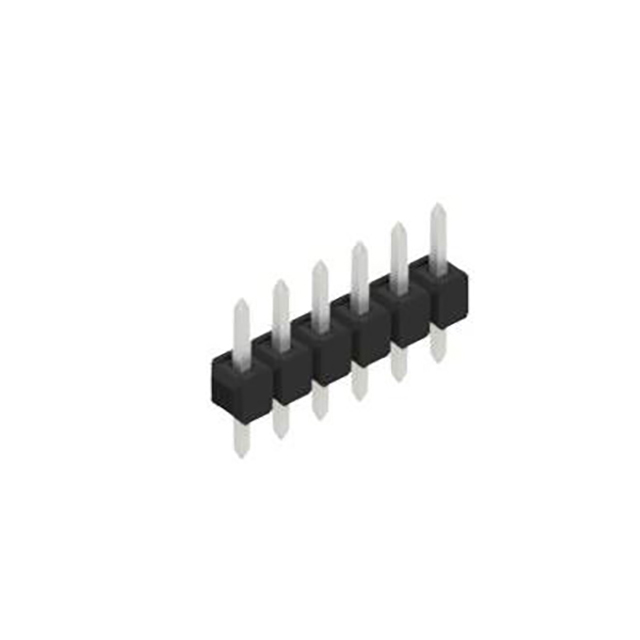

The SL 11 097 6 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains six contacts designed for through-hole mounting on printed circuit boards. The connector utilizes a PA 4.6 GF insulating body, providing mechanical stability and thermal resistance. Contact surfaces are finished with tin plating to ensure reliable electrical conductivity and corrosion resistance in standard electronic assemblies.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single-row layout with square contact pins
• Tin-plated contact surfaces for conductivity
• PA 4.6 GF insulating material for durability

Headers, Male Pins Applications

• General-purpose PCB interconnects
• Wire-to-board connections
• Industrial control panel assembly
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm plating thickness and material composition. Ensure the required contact count matches the six-position specification. Confirm RoHS compliance status if restricted substances are mandated for the target application environment before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header with a 2.54 mm pitch is required. The six-contact size suits compact circuits needing minimal board space. Verify that the through-hole footprint aligns with the PCB design rules. Consider the operating temperature range and nominal current ratings relative to the load requirements of the specific circuit design.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered headers from Fischer Elektronik. The series offers customizable dimensions and contact counts while maintaining standardized spacing. Components in this line are designed for robust performance in various electronic environments, balancing mechanical strength with electrical reliability for consistent signal transmission.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, six-position count, and through-hole termination style. Verify that alternative manufacturers offer compatible PA 4.6 insulation and tin-plated contacts. Ensure physical dimensions fit within the existing enclosure constraints without modification.

Headers, Male Pins FAQ

What is the insulating body material?

The insulating body is made from PA 4.6 GF.

Is this connector suitable for wire-to-board applications?

Yes, the SL 11 series supports both board-to-board and wire-to-board systems.
