SL 11 097 7 G

Headers, Male Pins Overview

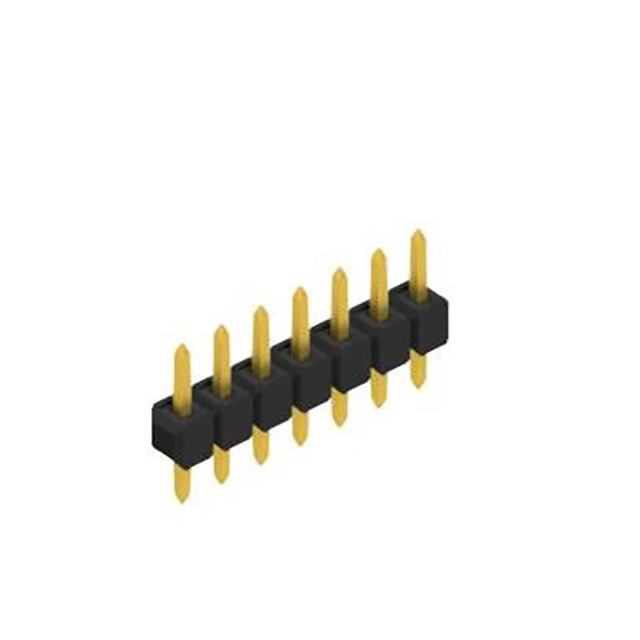

The SL 11 097 7 G is a male header connector from the Fischer Elektronik SL 11 series, designed for through-hole PCB mounting. It features a single row with 7 contacts and a 2.54 mm (0.100 inch) pitch. The contacts are gold-plated (Ni+Au) to ensure reliable signal transmission and corrosion resistance. The connector utilizes a polyamide insulation material rated for operating temperatures between -40°C and +163°C, with soldering capability at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male header configuration for standard PCB interconnection
• Gold-plated contacts provide enhanced conductivity and durability
• Polyamide insulation supports high-temperature operation up to 163°C

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Signal routing in industrial control modules
• Consumer electronics assembly requiring reliable pin headers

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and insulation material grade against the official datasheet before procurement. Confirm that the single-row, 7-position configuration matches the design requirements. Ensure compatibility with standard 2.54 mm pitch mating connectors. Check RoHS compliance status if required by project specifications.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for through-hole applications. The gold plating makes it suitable for environments where corrosion resistance is critical. Consider the thermal rating of the polyamide insulation when designing for high-temperature processes or operation.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of PCB connectors. The series offers various pole counts and configurations for male headers. The SL 11 097 7 G specifically denotes a 7-position variant within this standardized family of rectangular connectors.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, single-row layout, and 7-pin count. Verify that alternative components offer compatible gold plating and similar thermal ratings. Cross-reference mechanical dimensions to ensure fit within the designated PCB footprint.
