SL 11 097 7 S

Headers, Male Pins Overview

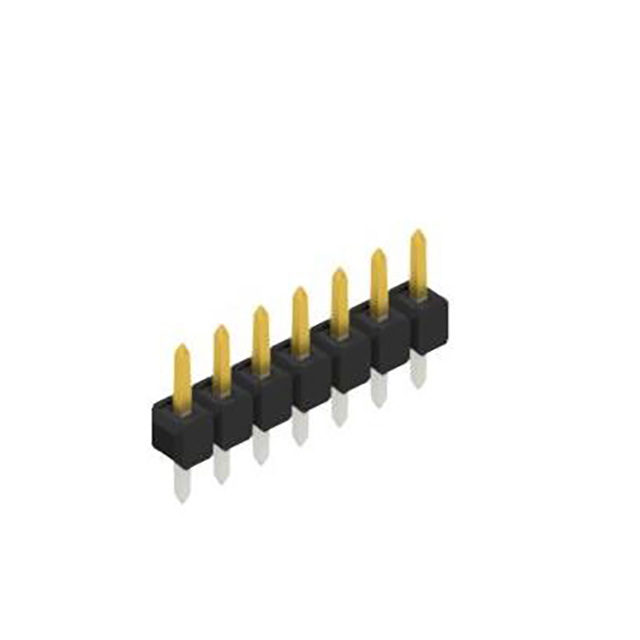

The SL 11 097 7 S is a male header connector manufactured by Fischer Elektronik, designed for through-hole mounting on printed circuit boards. It features a single row of contacts with a pitch of 2.54 mm (0.100 inches). The component has a total contact length of 13.90 mm and an insulation height of 2.80 mm. The housing is constructed from polyamide (PA46) nylon, meeting UL 94 V-0 flammability standards. Electrical specifications include a specific insulation resistance greater than 10^7 Ω·m. The connector supports reflow soldering processes with a thermal tolerance of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Through-hole mounting technology compatible with standard PCB assembly lines
• Polyamide insulation material ensuring high thermal stability and flame resistance
• Precision-molded housing dimensions for consistent spatial integration

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Signal routing in consumer electronics assemblies
• Industrial control board connections

Headers, Male Pins Procurement Notes

Verify the exact pin count and contact surface finish against the official Fischer Elektronik datasheet before procurement. Confirm that the specific suffix '7 S' corresponds to the required plating thickness and material composition. Ensure compatibility with automated pick-and-place equipment if high-volume production is planned. Cross-reference the mechanical drawing dimensions to validate clearance requirements within the target enclosure design.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required for through-hole applications. Consider the PA46 insulation material for environments requiring robust thermal performance during soldering. Evaluate the UL 94 V-0 rating against safety regulations for the end product. Compare physical dimensions against available board space to ensure proper fitment without interference with adjacent components.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik, characterized by standardized 2.54 mm spacing. The series offers various pin counts and housing configurations to suit different connectivity needs. Components in this line are engineered for reliable electrical contact and mechanical durability in standard electronic manufacturing processes.

Headers, Male Pins Replacement Considerations

Consult the Fischer Elektronik catalog for direct substitutes within the SL 11 series with matching pin counts. Verify dimensional equivalence and electrical ratings before substituting with generic equivalents. Ensure any alternative maintains the same through-hole compatibility and insulation material properties.
