SL 11 097 7 Z

Headers, Male Pins Overview

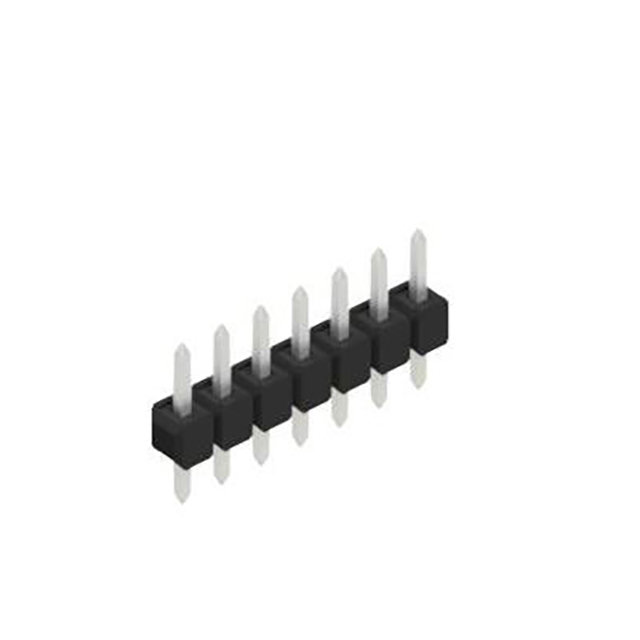

The SL 11 097 7 Z is a male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features a single row with seven contacts and a standard 2.54 mm (0.100 inch) pitch. The housing is constructed from black polyamide (PA66), providing mechanical stability and electrical insulation. Contacts are made of bronze and finished with tin plating to ensure reliable conductivity and corrosion resistance. This component serves as a robust interconnection solution for electronic assemblies requiring secure pin-to-socket mating.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single-row design with seven positions for compact integration
• Tin-plated bronze contacts for enhanced conductivity and durability
• Black polyamide housing offering thermal and chemical resistance

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Industrial control system signal routing
• Consumer electronics assembly modules
• Prototyping and development board connections

Headers, Male Pins Procurement Notes

Verify the specific contact count and housing color against official Fischer Elektronik documentation before procurement. Ensure that the through-hole footprint matches the target PCB layout dimensions. Confirm RoHS compliance status if required by project specifications. Cross-reference the full part number including suffixes to guarantee exact material and plating specifications are met.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for direct PCB insertion. The 2.54 mm pitch ensures compatibility with standard ribbon cables and socket connectors. Consider the mechanical retention provided by the through-hole pins versus surface-mount alternatives. Evaluate the tin-plated contact finish for suitable solderability and mating cycle requirements in the intended application environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers manufactured by Fischer Elektronik GmbH & Co. KG. The series offers various contact counts and configurations tailored for diverse PCB connection needs. These connectors are widely utilized in industrial and commercial electronics for their reliability and standardized spacing. The SL 11 097 7 Z represents a specific variant within this extensive lineup, optimized for seven-position applications.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with matching pitch and contact count. Generic equivalents with 2.54 mm pitch and through-hole mounting may be considered if dimensional and material specifications align. Verify that alternative parts meet the same current and voltage ratings to ensure functional equivalence without compromising safety standards.
