SL 11 097 8 G

Headers, Male Pins Overview

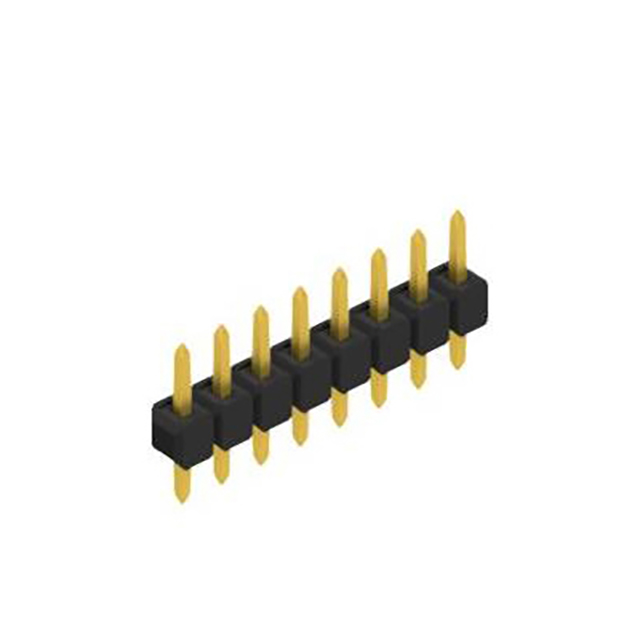

The SL 11 097 8 G is a male pin header connector manufactured by Fischer Elektronik. It features an 8-position configuration with a 2.54 mm (0.100 inch) pitch. The component utilizes a single row of through-hole contacts designed for PCB mounting. Contact materials consist of copper alloy with tin plating to ensure reliable electrical performance and corrosion resistance.

Headers, Male Pins Feature Summary

• Single row male pin header design for standard PCB integration
• Through-hole termination method ensures secure mechanical attachment
• Tin-plated copper alloy contacts provide durable electrical connectivity

Headers, Male Pins Applications

• General purpose electronic circuit board interconnections
• Prototype development and testing setups
• Consumer electronics assembly requiring standard pin headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's official datasheet to confirm exact contact length, insulation height, and packaging specifications. Ensure compatibility with mating socket connectors regarding pitch and row count. Cross-reference the part number with authorized distributors to confirm current availability and compliance with relevant environmental standards such as RoHS.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for through-hole applications. The 2.54 mm pitch is compatible with standard breadboards and mating connectors. Consider the physical dimensions and contact material properties to ensure suitability for the intended current load and mechanical environment of the target application.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series offers various position counts and configurations to support diverse PCB layout requirements. The SL 11 097 8 G specifically addresses needs for compact, reliable connections in space-constrained designs while maintaining standard spacing for broad interoperability.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitutes within the SL 11 series with different pin counts or suffix variations. Verify that any alternative component matches the 2.54 mm pitch, single row format, and through-hole termination style to maintain mechanical and electrical compatibility.
