Headers, Male Pins Overview

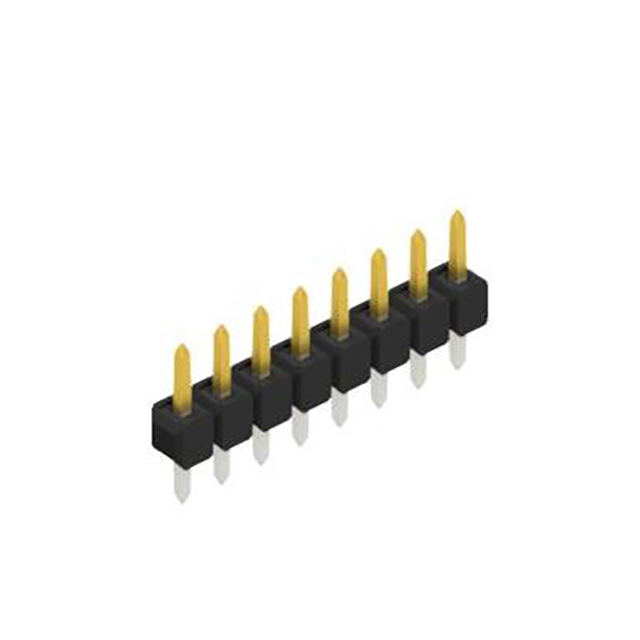

The SL 11 097 8 S is a male pin header connector manufactured by Fischer Elektronik. It features a single row of eight contacts with a 2.54 mm (0.100 inch) pitch. The component utilizes through-hole mounting for secure PCB attachment. Contact materials include copper alloy with tin plating, ensuring reliable electrical conductivity and corrosion resistance. The insulator is constructed from polyamide (PA46), providing thermal stability and mechanical strength. Overall contact length measures 13.90 mm, with an insertion depth of 3.30 mm into the PCB.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Through-hole mounting technology for robust mechanical fixation
• Polyamide insulation material offering high thermal endurance
• Tin-plated copper alloy contacts for dependable signal transmission

Headers, Male Pins Applications

• General-purpose electronic circuit boards requiring interconnects
• Industrial control modules utilizing standard pin headers
• Consumer electronics assemblies needing reliable signal routing

Headers, Male Pins Procurement Notes

Verify that the specific order matches the Fischer Elektronik part number SL 11 097 8 S exactly. Confirm the contact count is eight poles and the pitch is 2.54 mm. Ensure the supplier provides documentation confirming the tin plating specification and PA46 insulation material. Cross-reference the manufacturer's datasheet to validate the physical dimensions and mounting style before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, eight-position male header is required for through-hole applications. The 2.54 mm pitch ensures compatibility with standard PCB layouts and mating connectors. Consider the thermal rating of the polyamide insulator if the assembly undergoes high-temperature processing. Verify that the straight pin orientation fits the spatial constraints of the design.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts and configurations for diverse electronic interconnection needs. The SL 11 097 8 S specifically addresses requirements for compact, reliable single-row connections in standard industrial and commercial electronics environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes must maintain the 2.54 mm pitch, eight-pole count, and through-hole mounting style. Verify that alternative manufacturers offer identical tin-plated contacts and PA46 insulation. Ensure physical dimensions match to guarantee proper fit within the existing PCB footprint and housing constraints.
